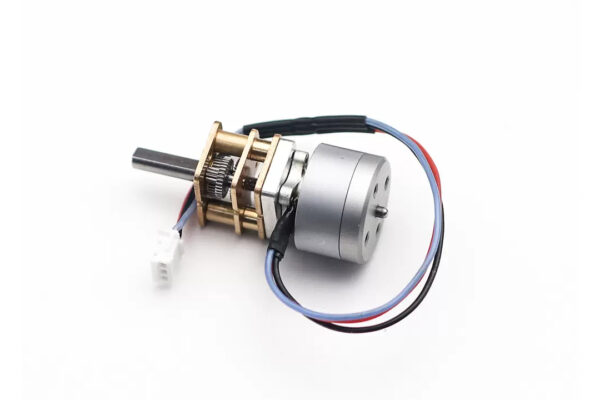

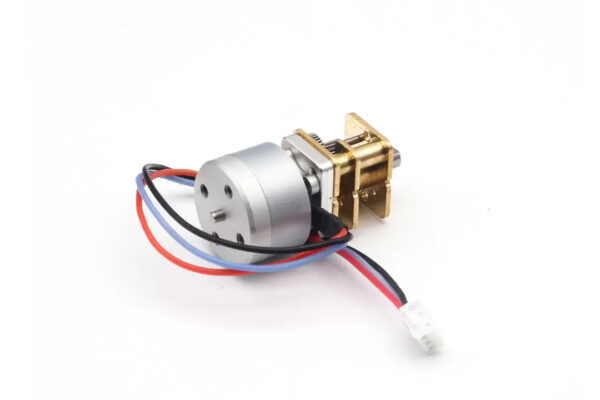

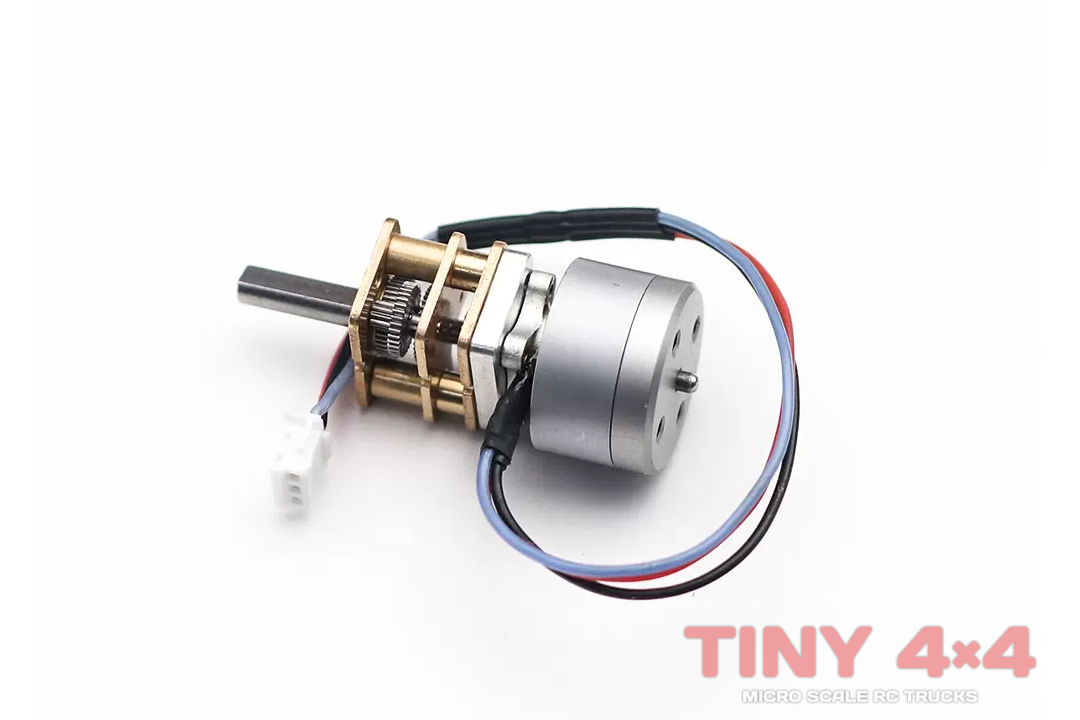

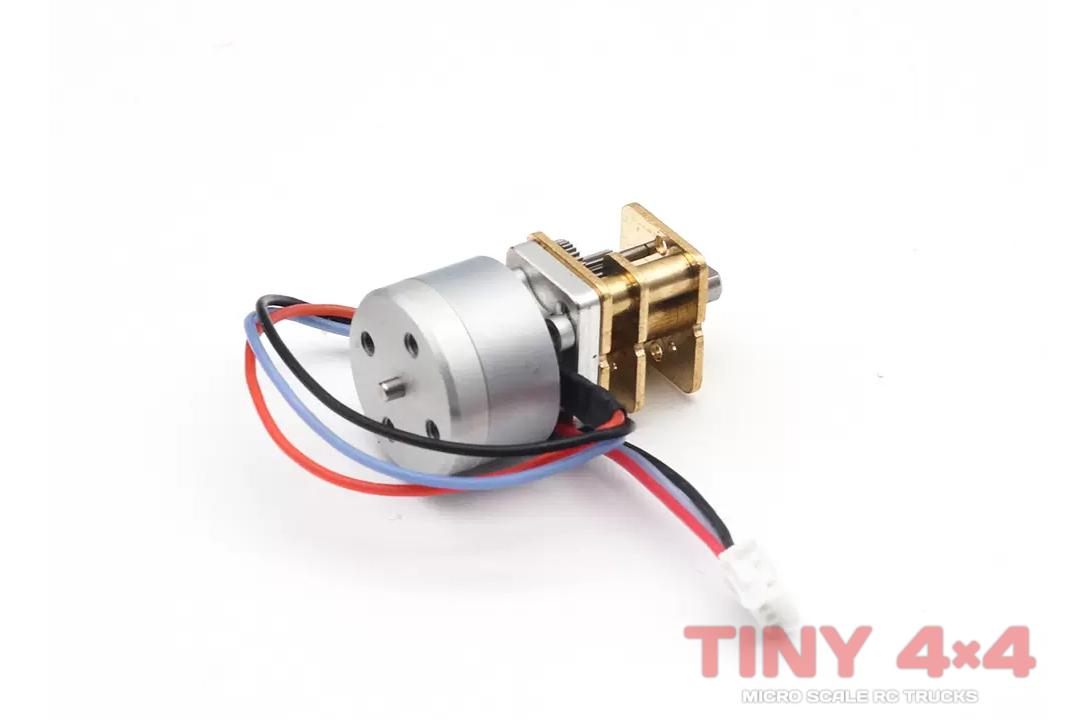

Micro Brushless Outrunner Motor

Description

Micro Brushless Outrunner Motor. It is no exaggeration to say that this motor, together with the 35A Brushless ESC, is a total game-changer for Olandoo and Geko24 owners. Finally, all the benefits of brushless are available for 1/32 and true-scale 1/24 in a hassle-free, plug’n’play package. You will be astounded at the finesse with which you can control your truck at low speed. A brushed motor will never match the slow startup of brushless, even with the best ESCs. Now add in oodles of torque, whilst retaining a good lick of top-end speed and you have a winner! Not only do you get this huge step up in power and control, but it also comes in a very compact package!

This little outrunner comes from the micro drone world, and unlike some branded competitors has had the spindle completely replaced to suit the N20-size gear head. Other manufacturers rely on turning the shaft to fit the tiny gearbox pinion; a decidedly home-brew approach that has been eliminated here. While it is unsensored, the 12-pole outrunner format means you can put any fears of cogging to rest. Most small brushless ESCs should work with this motor, but we recommend pairing it with our Micro Brushless 35A ESC.

Compatibility: Micro Brushless Outrunner Motor

It is worth noting that the micro brushless outrunner motor is available with two shaft lengths and a variety of gear reduction ratios. Also, the diameter of the can means this motor will not fit some models, and for others some modifications will be required. Our recommended reduction ratios are a guide only, based on likely usage. 1:5 is the fastest combination and 1:100 is the slowest, but with the most torque.

Please refer to the list below, and note the shaft length required for your model:
No Modification Required For:

• OH35A01: Short Shaft (1:30 or 1:50 recommended)
• OH32A02: Short Shaft (1:30 or 1:50 recommended)
• OH32A03: Short Shaft (1:30 or 1:50 recommended)
• OH32M01: Short Shaft (1:50 or 1:100 recommended)
• OH32M02: Short Shaft (1:50 or 1:100 recommended)
• OH35P01 Alloy Chassis Conversion ONLY: Short Shaft (1:30 or 1:50 recommended)
• OH32T01: Short Shaft (1:50 or 1:100 recommended)
• OH32X02: Short Shaft (1:10 or 1:5 recommended)
• DooRok: Short Shaft (1:30 recommended)
• Geko GK24: Long Shaft (1:50 or 1:100 recommended)

Modification Required For:

• OH32P02: Short Shaft (1:30 or 1:50 recommended) – you will need to dismantle and carefully file down the corners of the alloy adapter plate between motor and gearbox to fit the OH32P02 plastic housing.
• OH32X01: Short Shaft (1:30 recommended) – the motor fits but we recommend a small amount of sanding on the low cage cross-brace for clearance
• Orlandoo 2spd Gearbox: Long Shaft, Spacer Plate required (coming soon)
• Kuro King XR01: Long Shaft, Spacer Plate required (coming soon)

Not Compatible With:

• OH35P01: Technically you could make the motor fit by cutting away the plastic chassis but we believe this would compromise chassis strength too much. If you are a P01 owner we’d recommend the alloy chassis conversion if you want to go brushless.
• OH32P02 MAS-600 Alloy IFS: We have not tested this yet so cannot confirm compatibility

Specifications: Micro Brushless Outrunner Motor

• Overall Dimensions (not ishaft): W14.3mm x H14.3mm x L23.6mm
• Motor Length: 14.6mm
• Motor Diameter: 14.3mm
• Nominal Input Voltage: 6v-12v
• Motor Speed: 4300kv – with gear reduction
• Motor Poles: 12 Pole
• Gearbox Length: 9mm
• Gearbox Diameter:10mm x 12mm
• Output Shaft Diameter: 3mm ‘D’
• Output Shaft Length: Choose 4mm (short) or 9mm (long)
• Wire Length: Approx 95mm
• Plug: ZH1.5
