Description

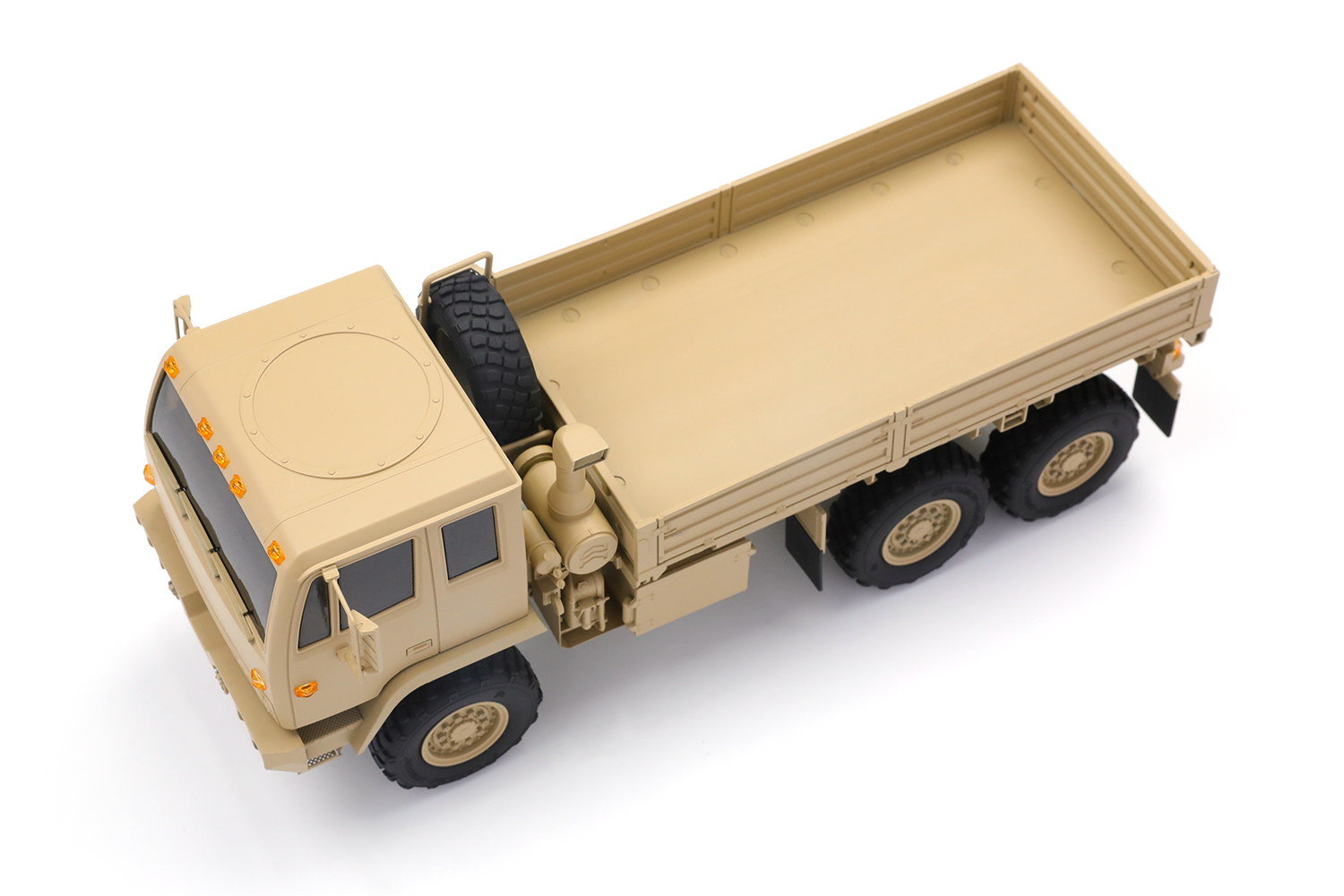

Orlandoo Hunter OH32M02 Kit. Here we have Orlandoo’s second 1/32 RC Military Truck, a 6×6 sister to the OH32M01. Not only do you get all the scale goodness of the M01, you also have a third pass-thru axle and super-realistic twin axle leaf suspension setup! If you own both trucks, you will also find they share a number of design features and common parts, making your spares interchangeable. Whether or not you already own an M01, there is a lot to keep the most demanding scale RC enthusiast happy here!

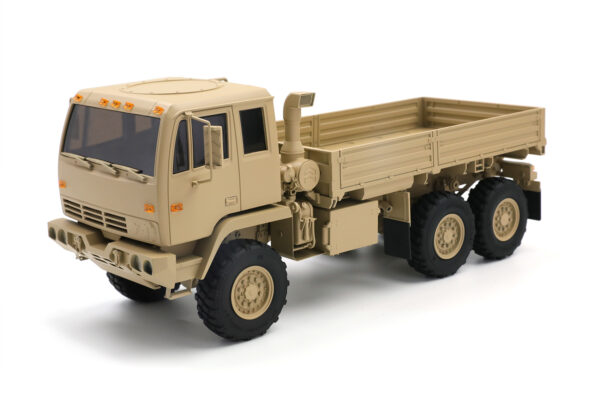

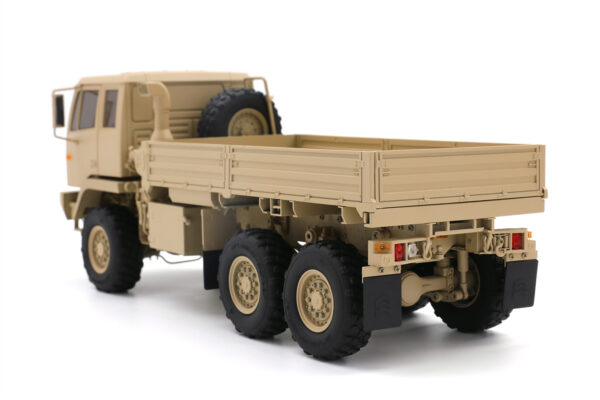

Orlandoo have modelled the OH32M02 after the Stewart & Stevenson M1083 MTV. From the triple wipers to the air intake and mudflaps, they have faithfully represented the original truck. You will get a highly detailed model kit, that also just happens to be RC! This is the most expensive Orlandoo kit to date, but you get an awful lot of truck for your money.
The OH32M02 is an unassembled kit, and requires servo, ESC, motor and battery for completion. We recommend you choose Orlandoo Hunter components to complete the package. Some modelling experience is recommended.
Specifications: Orlandoo Hunter OH32M02 Kit
- Alloy Frame

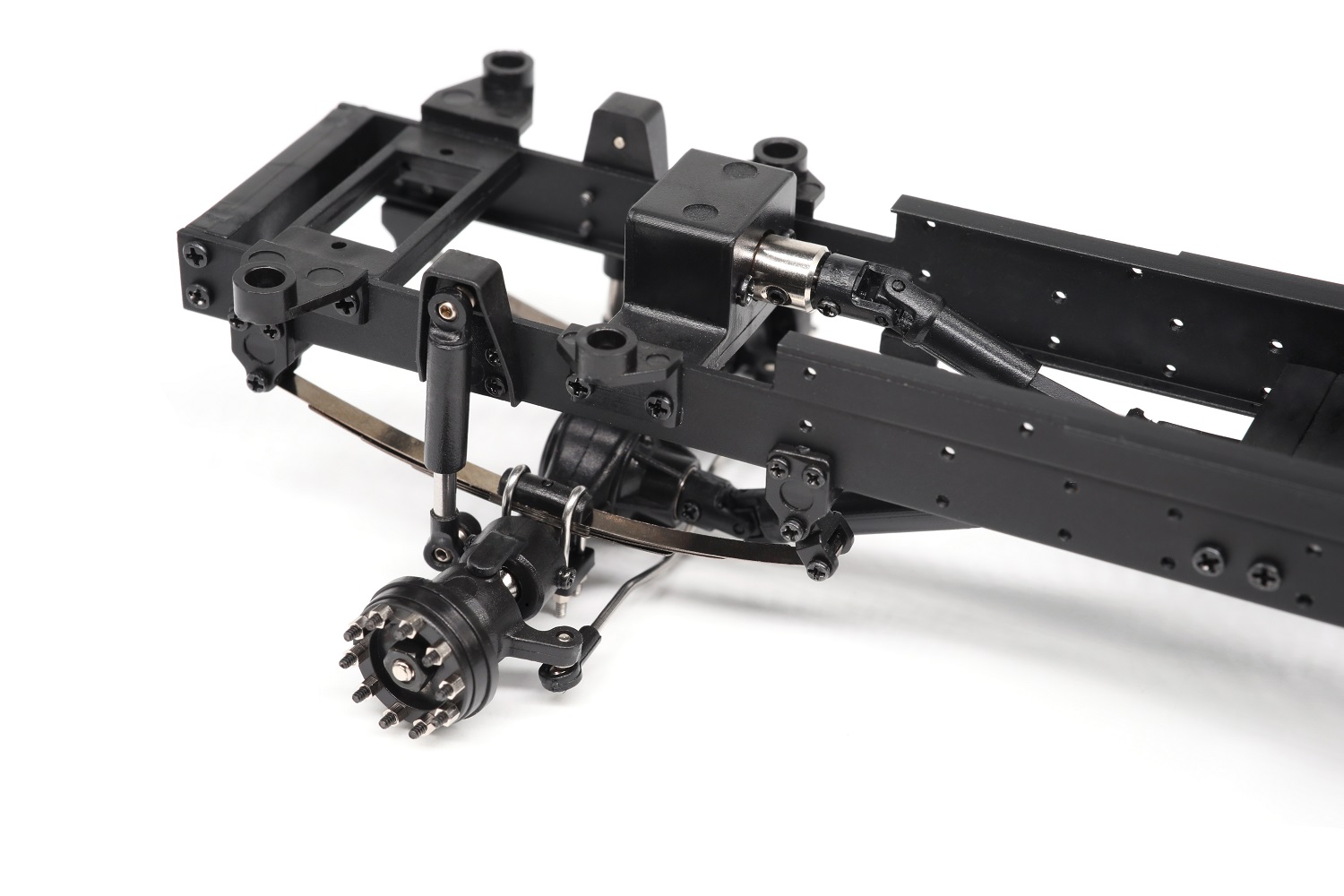

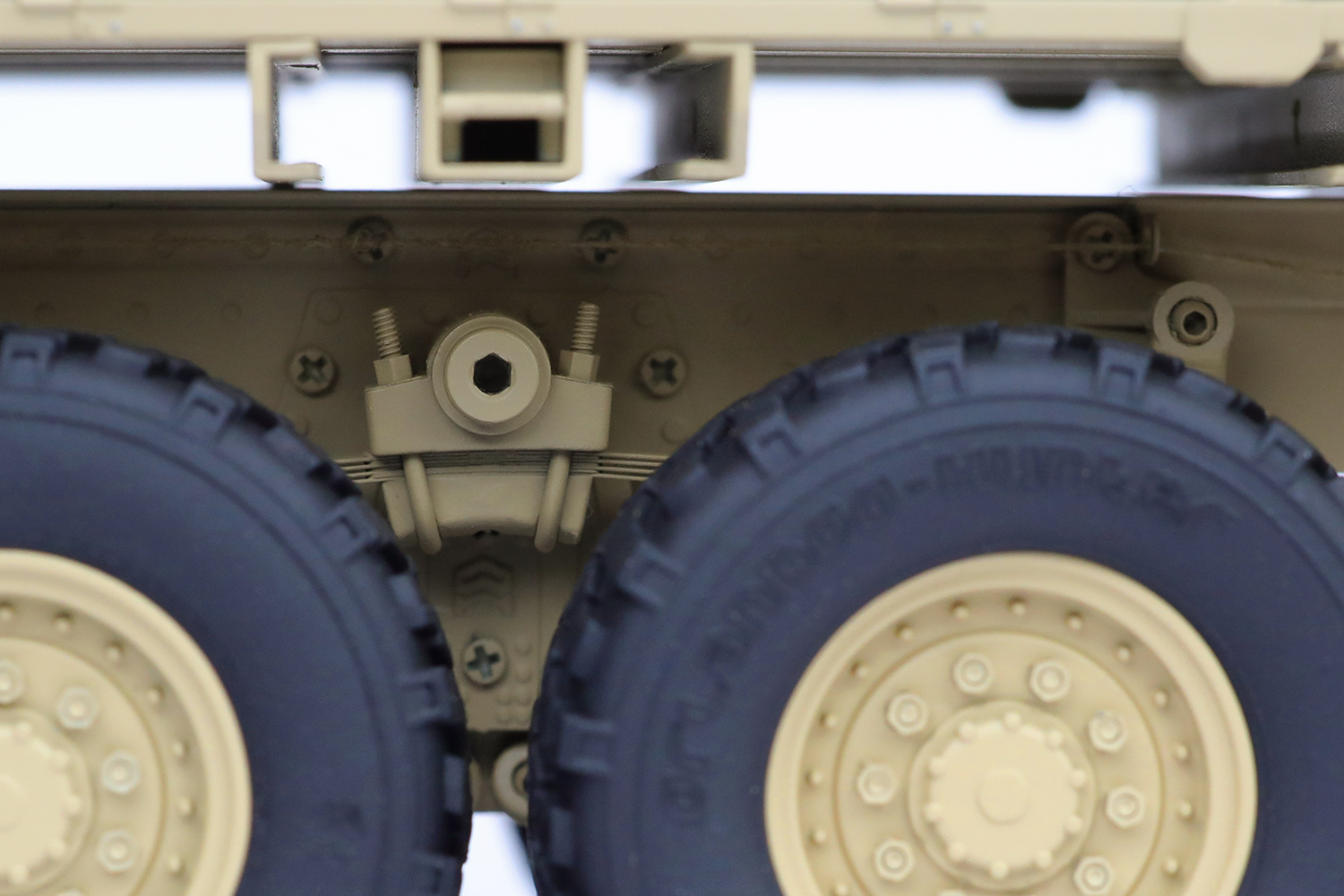

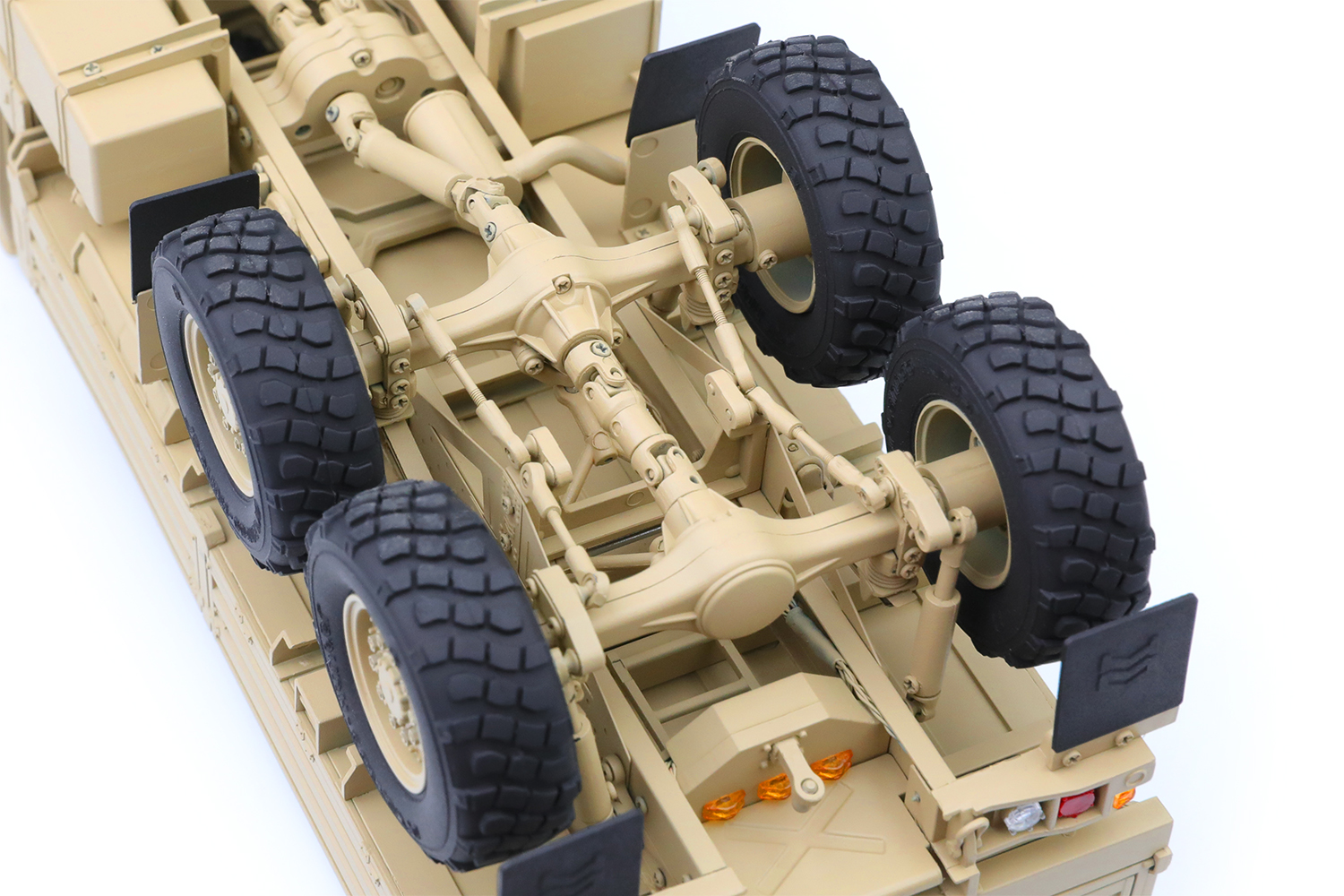

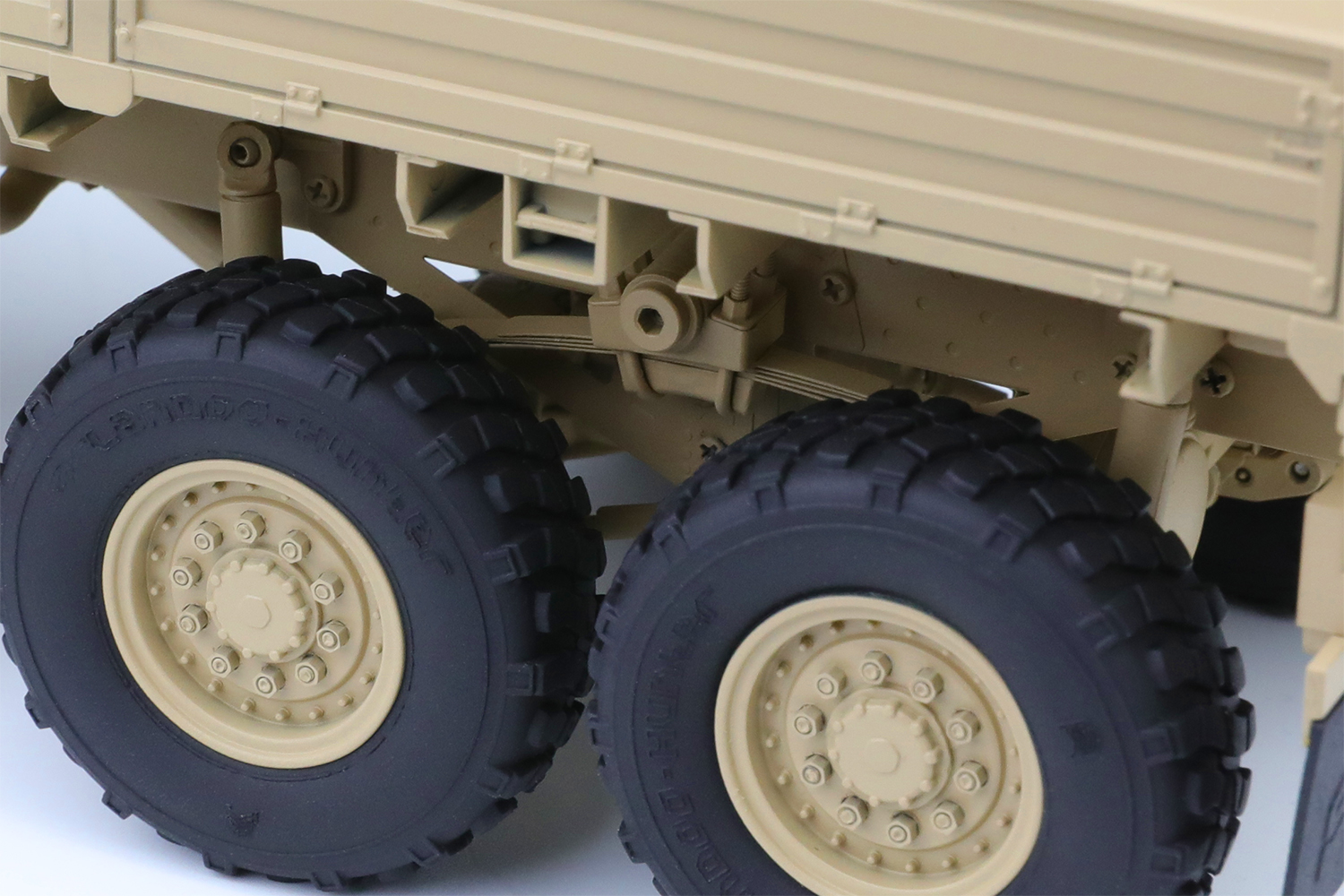

- Multilayer Leaf Springs & Simulation Dampers
- Realistic Tipping Cab
- Bolt Locking Wheel Hubs
- Forward-Located Divorced Motor Mount

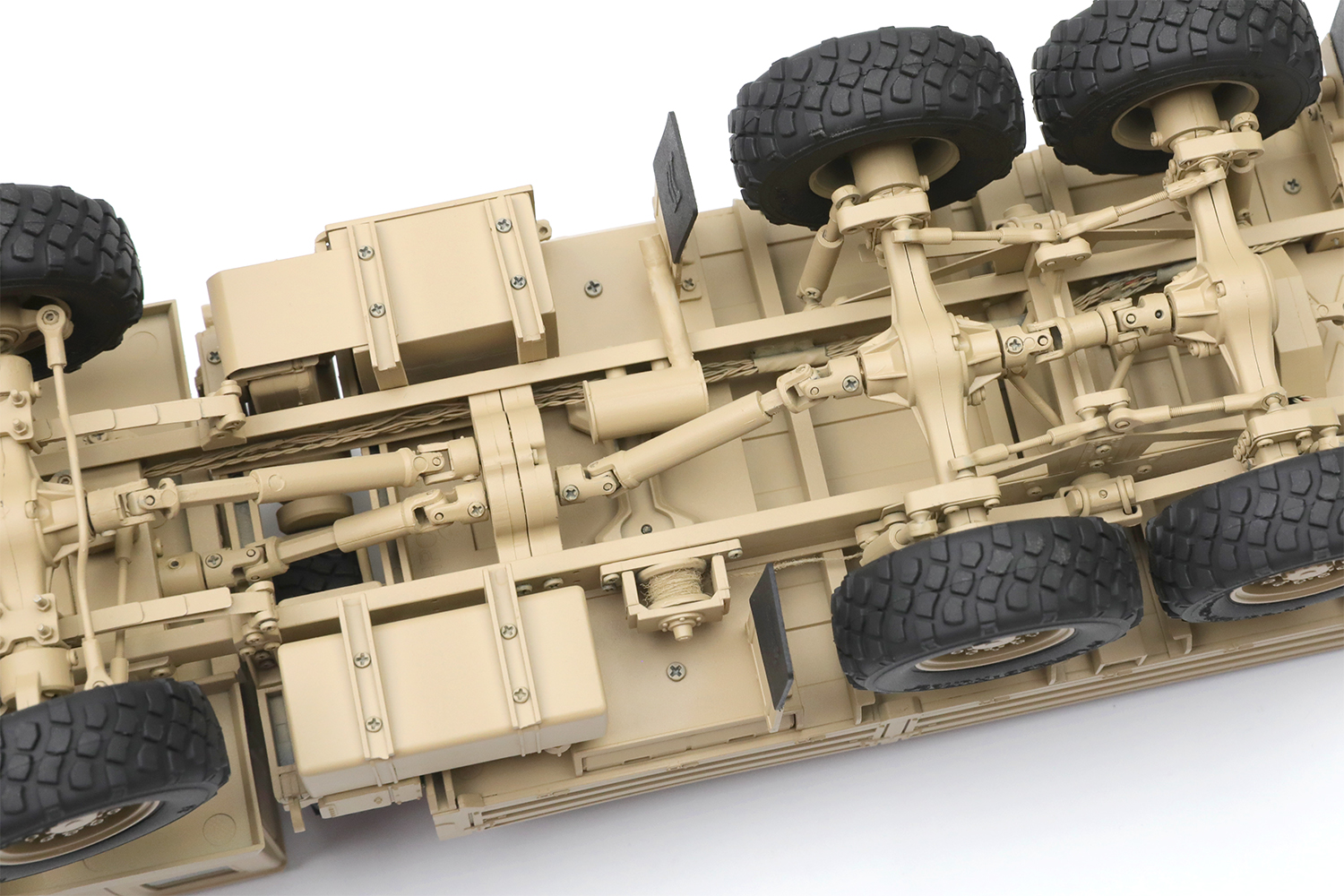

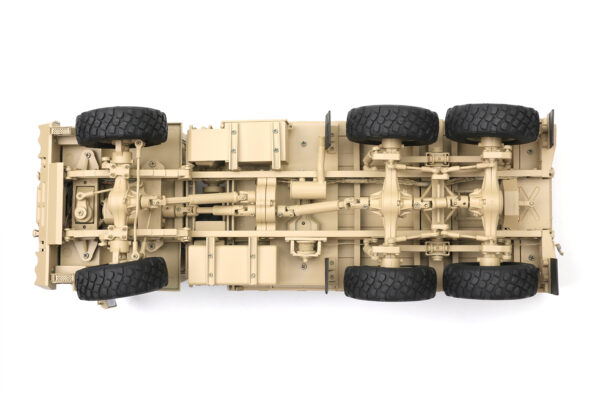

- Center Transfer Box

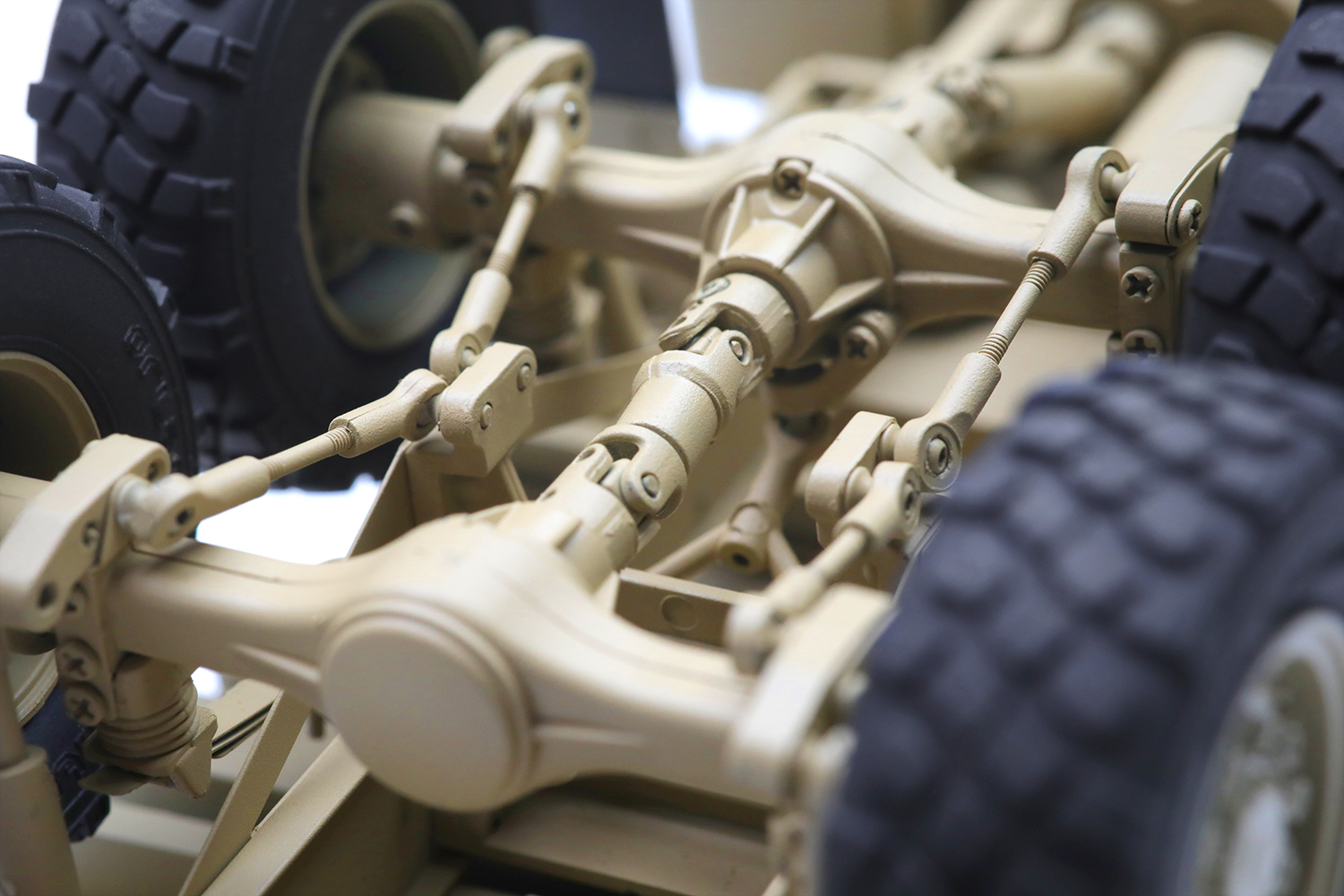

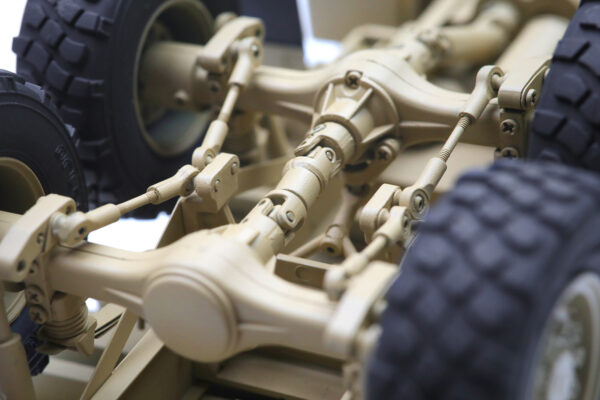

- Counter-Rotating Prop Shafts
- O.D.35mm Tire
- 21 Lights (LEDs are not included)
- Simulation Winch
Upgrade Driveshafts
We’ve seen some confusion online over which upgrade metal driveshafts are required for this truck. You can opt for silver UJ shafts or Red/black CVD shafts (which offer less extension therefore different lengths/numbers required). Here is the definitive list!
Silver UJ Shafts:
- 2x MD5-350 (2to2 variant) – transfer box to axles
- 1x MD5-300 – motor to transfer box
- 1x MD5-220 – between rear axles
Red’n’Black CVD Shafts:
- 1x MD3-225 – between rear axles
- 1x MD3-350 – motor to transfer box
- 1x MD3-400 – transfer box to rear axle
- 1x MD3-475 – transfer box to front axle
