DooRok 1/32 Rock Racer Kit

Description

DooRok 1/32 Rock Racer Kit. DooRok, Son of Stone!

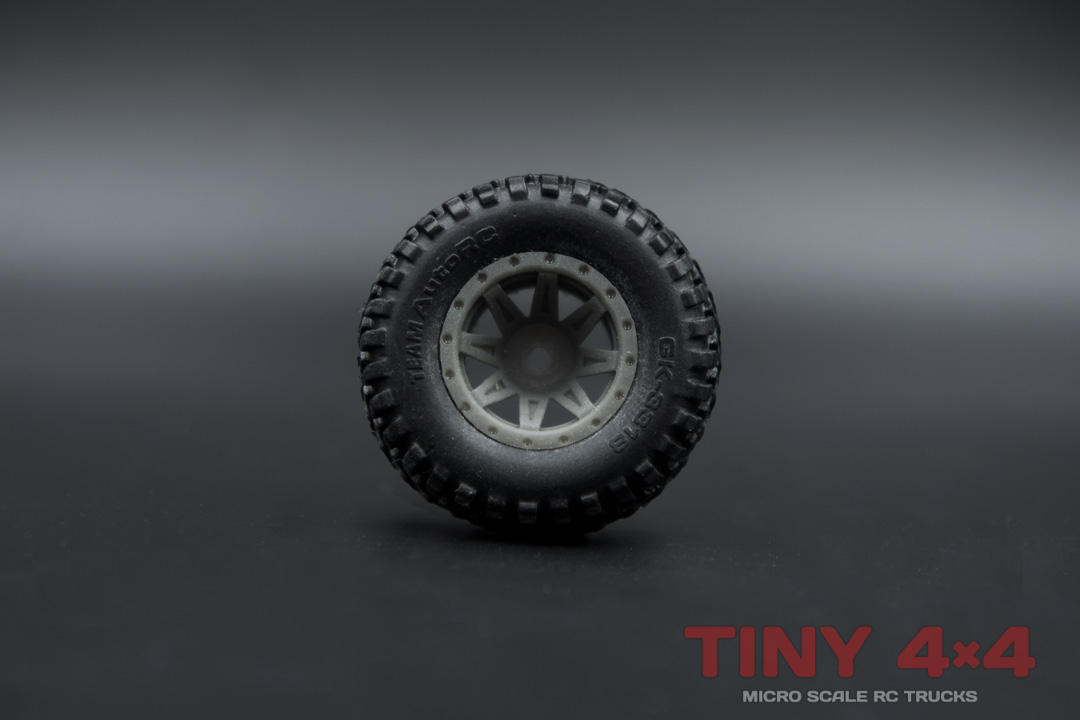

Dominic Widmer (WID) and Tiny4x4 have joined forces to co-develop the DooRok and take Orlandoos to a whole new level. We married the proven Orlandoo running gear with oversize 18mm super-wide offset Renegades wheels. The soft 33mm diameter Geko24 tires instantly provide more grip, improved ground clearance and all-round ability over a standard ‘doo.

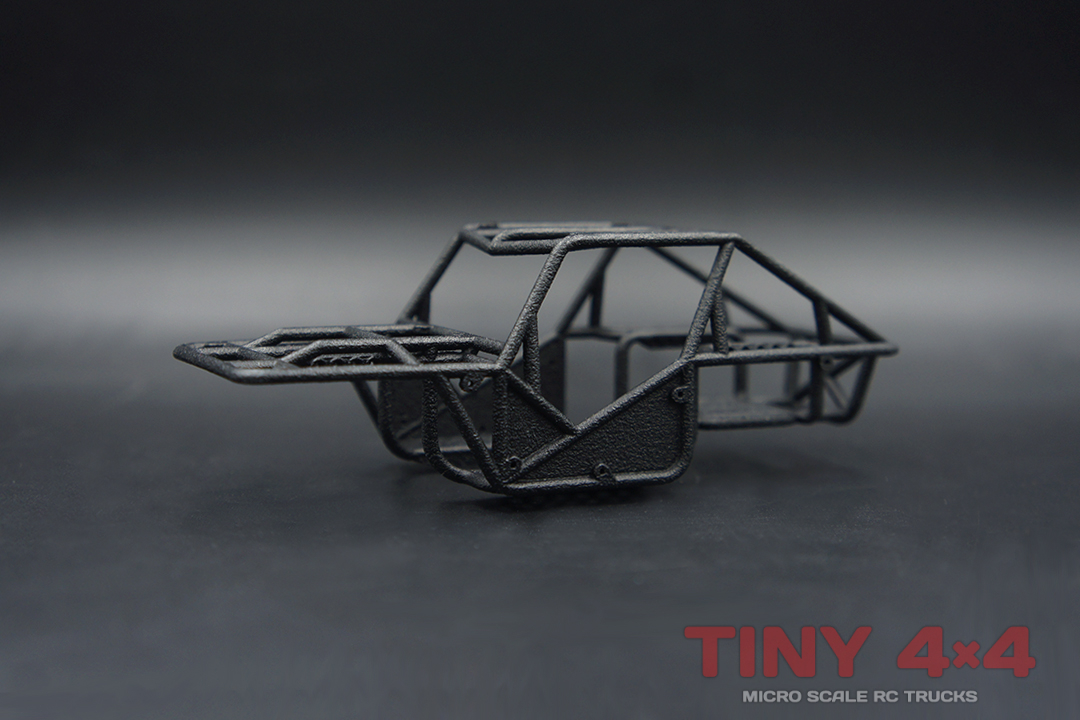

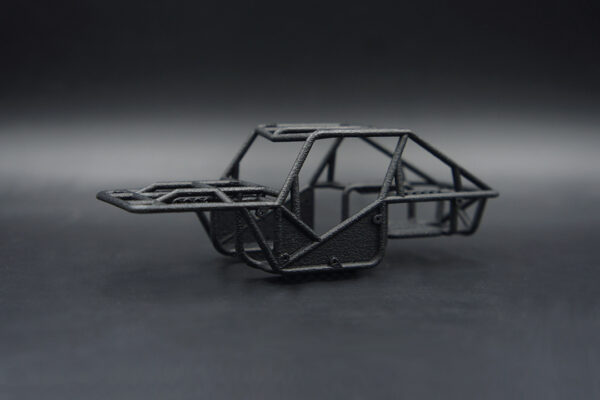

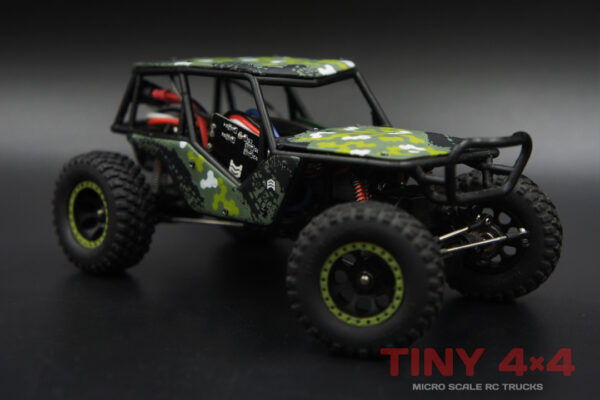

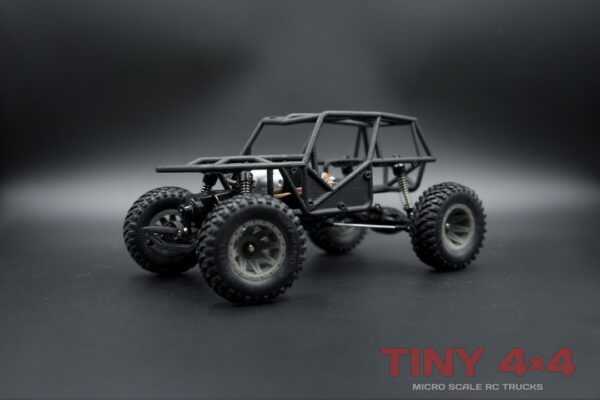

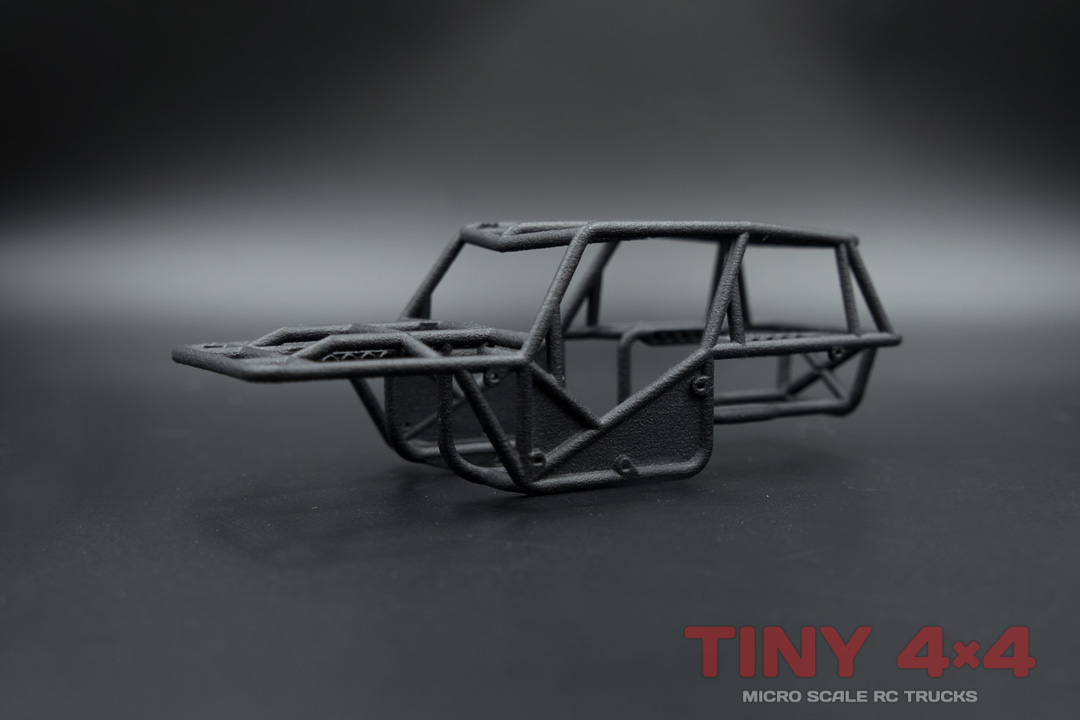

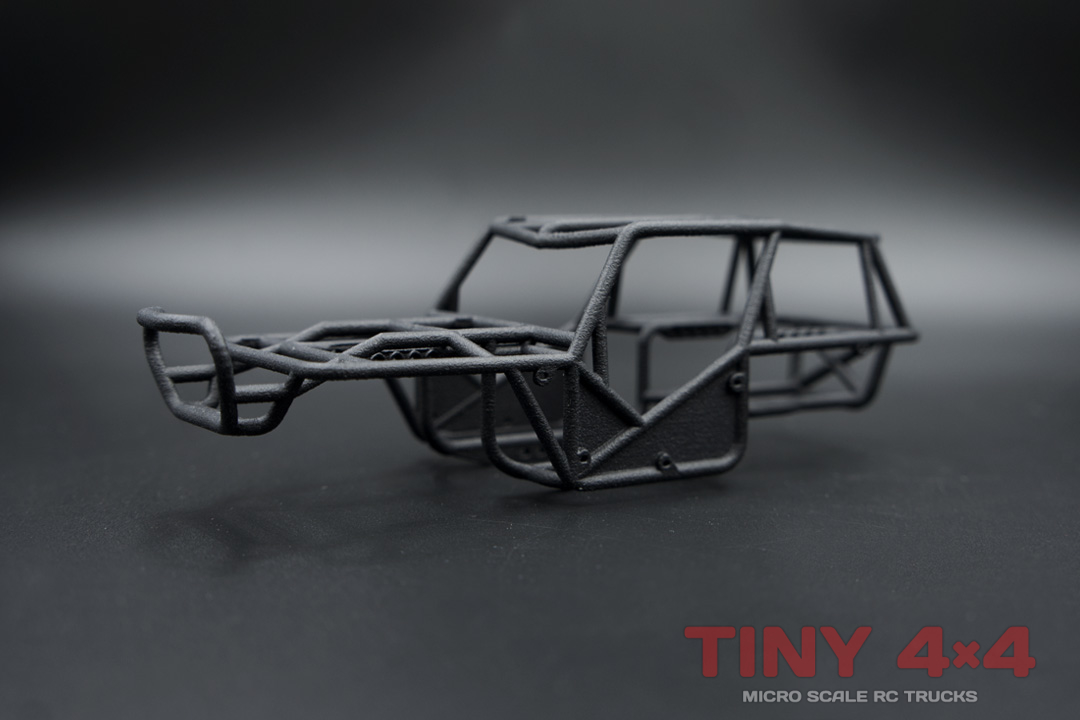

The real magic of the DooRok lies in the design of the 1/32 tube chassis. It provides great rigidity and light weight and is now produced from a super-tough Nylon. While the external profile may look familiar to seasoned RCers, make no mistake; this is far from a downsized copy. WID’s artistry in computer aided design is evident in every line, and the result is a coherent masterpiece of tiny design. It also comes with built-in front bumper or bumperless variants – choose the look that suits you!

The cage also includes an integrated sub-chassis, with geometry carefully calculated and optimized for the Orlandoo components. Not only do we provide two mounting positions for the skid plate (allowing longer can motors) you also get multiple shock locations to fine-tune your suspension! The shock mounts themselves are subtly angled to provide smoother travel and easy installation of the ball studs.

In case you were wondering, we can confirm that the DooRok 1/32 Rock Racer Kit offers truly astonishing performance. With battery and electronics installed it weighs in at a mere 100 grams (give or take, depending on your options). Oversize wheels, low center of gravity and fantastic approach angles allow DooRok to stick to the rocks like a spider. We have it on good authority that the DooRok still comfortably outperforms the recent officially released X01 Rock Bouncer, which has followed a similar concept!

We offer the DooRok as a builder’s kit. You will need to buy a 2.2g servo, Orlandoo TS0002 or AH Tarsi ESC and your choice of N20 motor – 150rpm for super-slow crawling, up to 2000rpm for balls-out rock racing. 200rpm or 300rpm provide a more balanced blend of wheel speed and torque. Match the components you need with your choice of radio gear.

With so many options to choose from, you can be certain to have a truly unique rig right out of the box. Now, enough talk; Driver, Doo Rok!

Included: DooRok 1/32 Rock Racer Kit

• DooRok 1/32 Tube Chassis
• 18mm Resin Wheels – Renegade (x4)
• Geko24 3318 Tires (x4)
• Orlandoo ‘X01’ Transmission & Shock Set
• Orlandoo ‘X01’ Axle Set (56mm)
• Orlandoo ‘X01’ Link Set
• Orlandoo ‘X01’ Hardware Set
• All necessary screw hardware, ball-bearings, gears and shafts etc are included

Specifications: DooRok 1/32 Rock Racer Kit

• Length: 108mm / 125mm
• Width: 70mm
• Height: 60mm
• Track: 61mm
• Wheelbase: 92mm

Needed To Complete:

• 2.2g Micro Digital Servo
• Orlandoo Hunter Motor w/reduction gear
• 7.4V 2S 120mAh LiPo Battery
• Plastic Model Paint (optional, for cage and wheels)
• EITHER:
• TS0002 Orlandoo ESC OR: AH Tarsi ESC
• 2-3 Channel Radio System (transmitter & receiver)
• OR:
• Orlandoo D4L 4in1 Radio System
• OR:
• Micro Brushless Outrunner Motor
• Micro Brushless 35A ESC

NOTES:

Kit assembly may require some parts may need to be slightly sanded or trimmed to get a perfect finish.

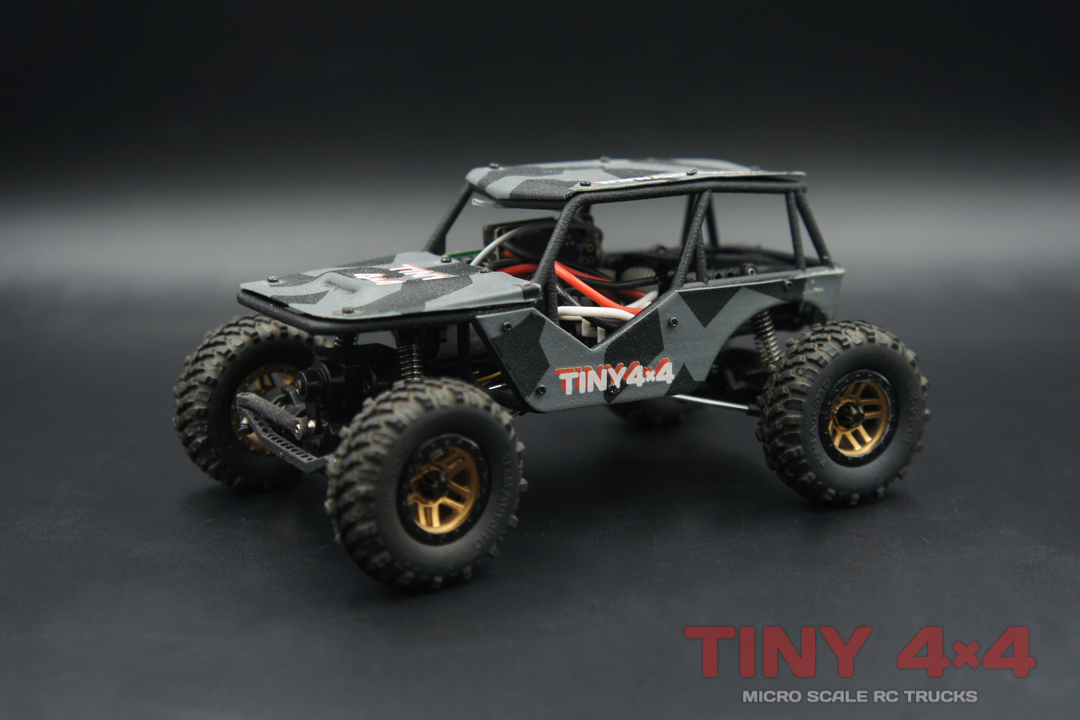

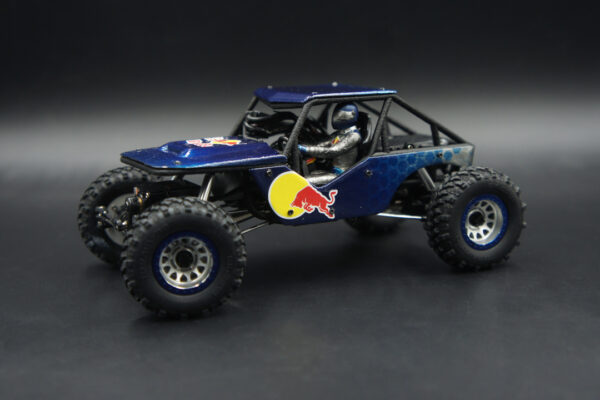

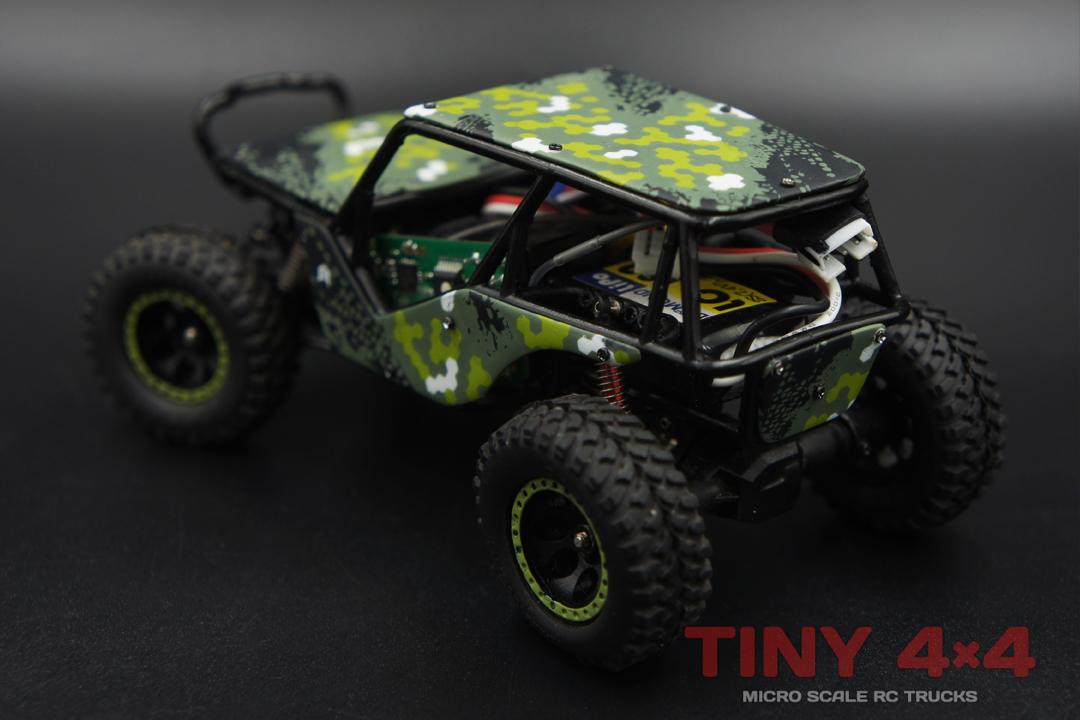

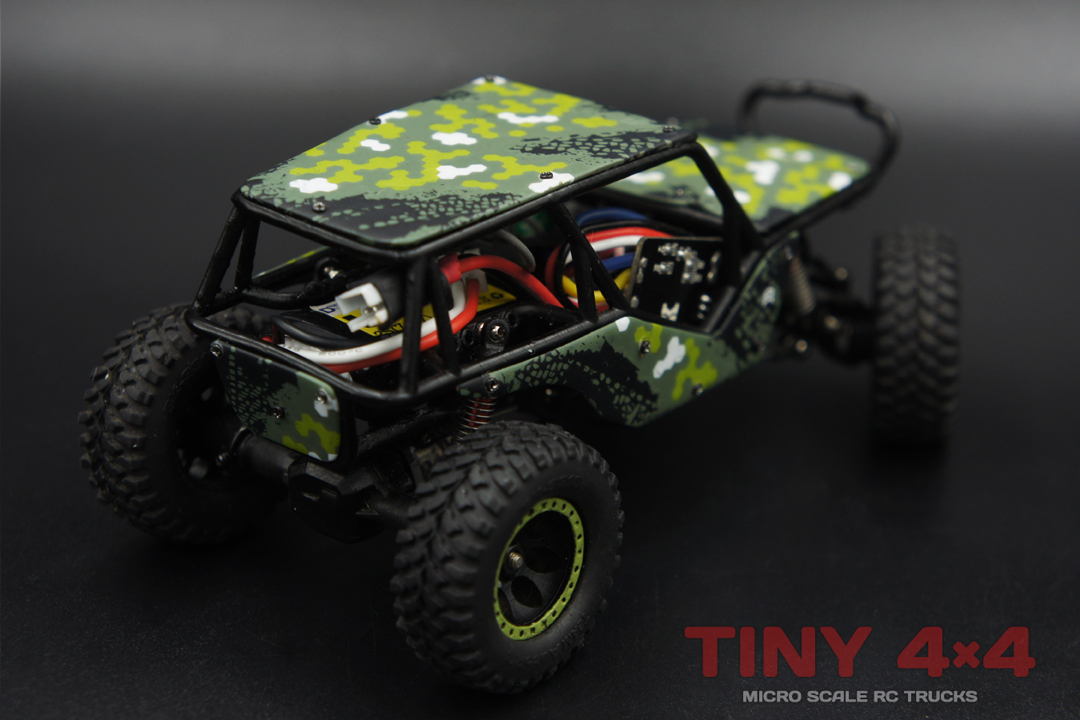

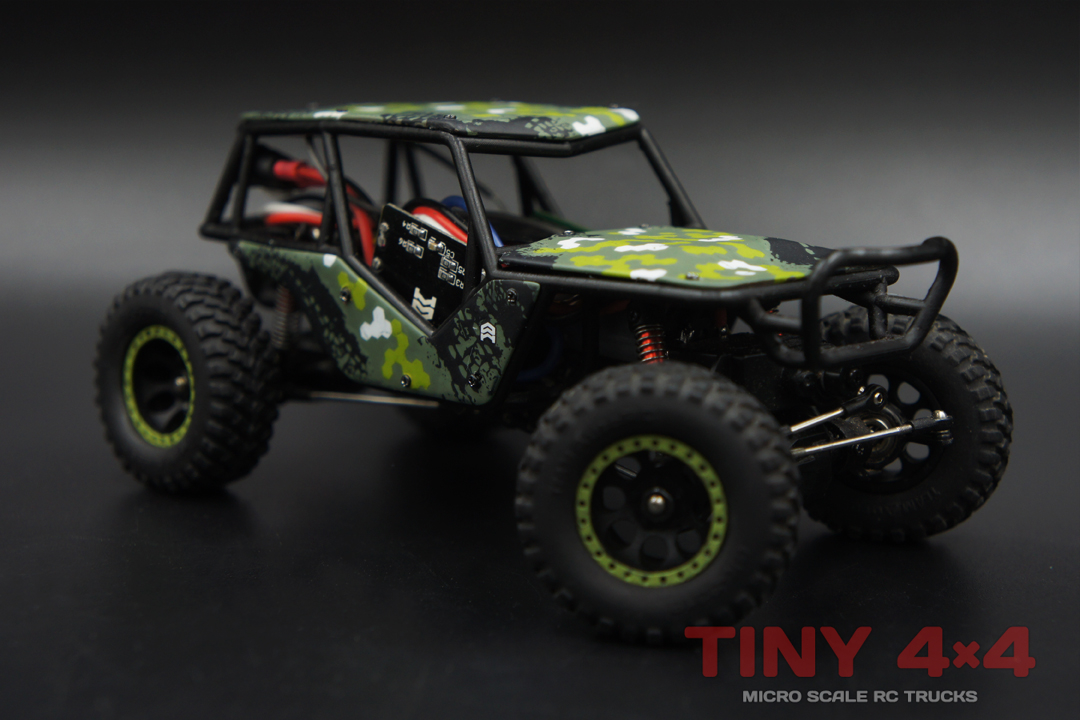

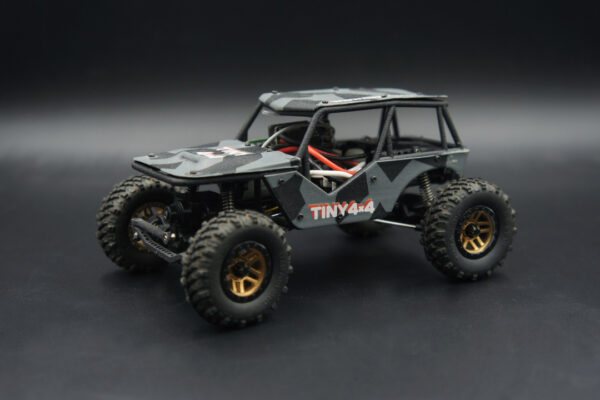

Complete and painted truck shown for illustrative purposes only. Body Panels not included. Assembly and painting required.
