TS0002 Orlandoo Electronic Speed Controller ESC

Description

TS0002 Orlandoo Electronic Speed Controller ESC. All the functionality and reliability of the TS0001 in a smaller package! This super-compact 2S capable ESC offers good low speed control and is rated at 5 Amps. It is suitable not only for the Orlandoo F150, Jeep and Pajero, but also for larger 1/24 or 1/20 scale micros. It can easily handle larger can motors and the loads produced by the micro RC ‘standard’ 1 inch wheels. You can even make use of it in a 1/10 vehicle as a handy winch esc and light controller.

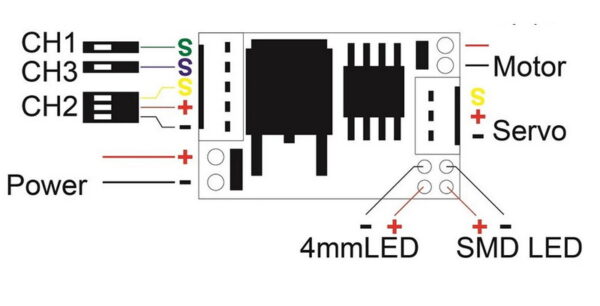

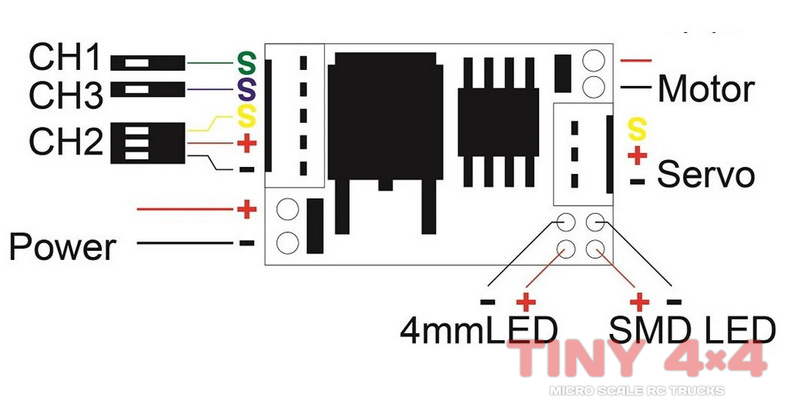

As well as standard forward/reverse functions, this ESC also provides an additional lead for powering the Orlandoo low voltage servo. It also packs in an LED light controller, operated via the third channel on your radio transmitter. You can wire the included 4mm front and SMD rear LEDs directly to the ESC’s low voltage outputs without resistors. As an added bonus, if your transmitter’s third channel has a 3-position switch option, you also have switchable off / low beam / high beam function!

Not only does the TS0002 offer a smaller footprint than the TS0001, it also packs a more compact wiring harness, helping you save critical space. It comes into it’s own when space is at a premium and is ideal for cage buggies such as the DooRok and OH32X01 Rock Bouncer.

The ESC is suited to crawlers and does not have a ‘double-tap’ brake mode – just forwards and reverse. It also does not provide a drag brake function. The gear reduction box on the N20 motors provides adequate drag braking.

Specifications: TS0002 Orlandoo Electronic Speed Controller ESC

• Dimensions: L19mm x W12mm x H6mm
• Plug: JST RCY or JST 2PH
• Input: 4.8v – 9.6
• Output: 5A

Functions:

• Forward / Reverse
• Low voltage servo Output
• 3-position LED Light Controller (Off/Low/Hi)

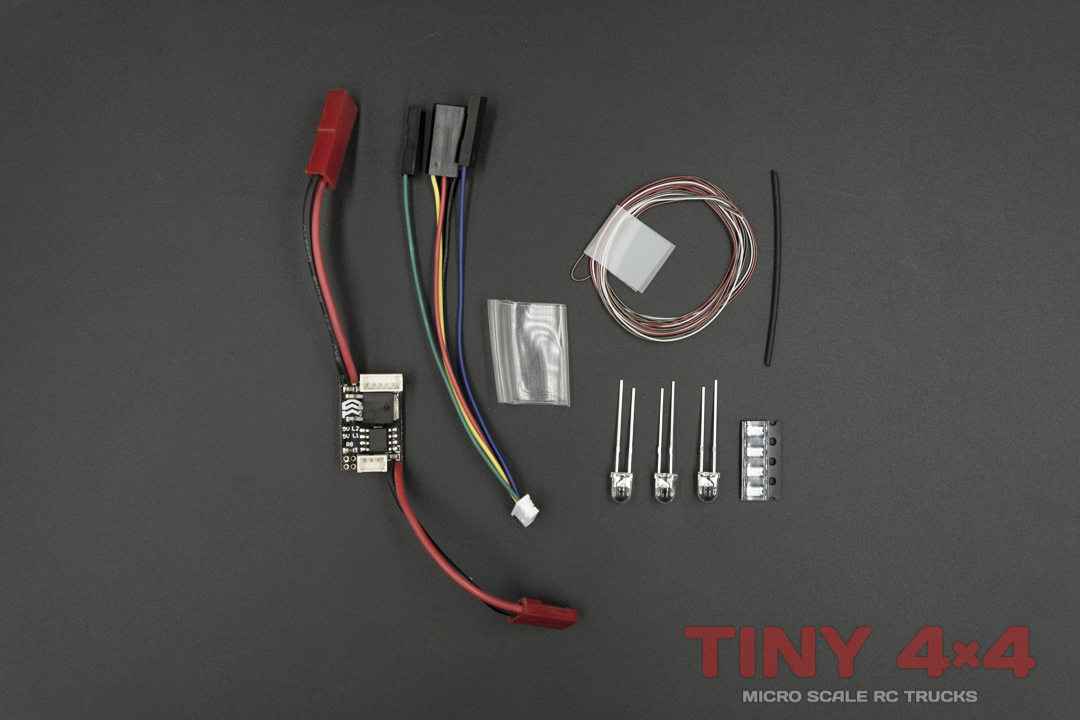

Included:

• 1x TS0002/B ESC
• 1x Signal wire
• 2x 4mm White LED
• 4x 3020 Red SMD LED
