LED PCB Assemblies for Orlandoo Hunter. Take the work out of lighting up your truck with these pre-wired LED harnesses! Available in four configurations – simply choose the set designed for your model and go.

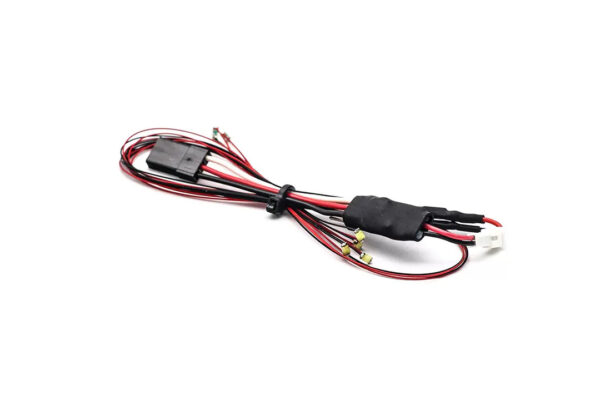

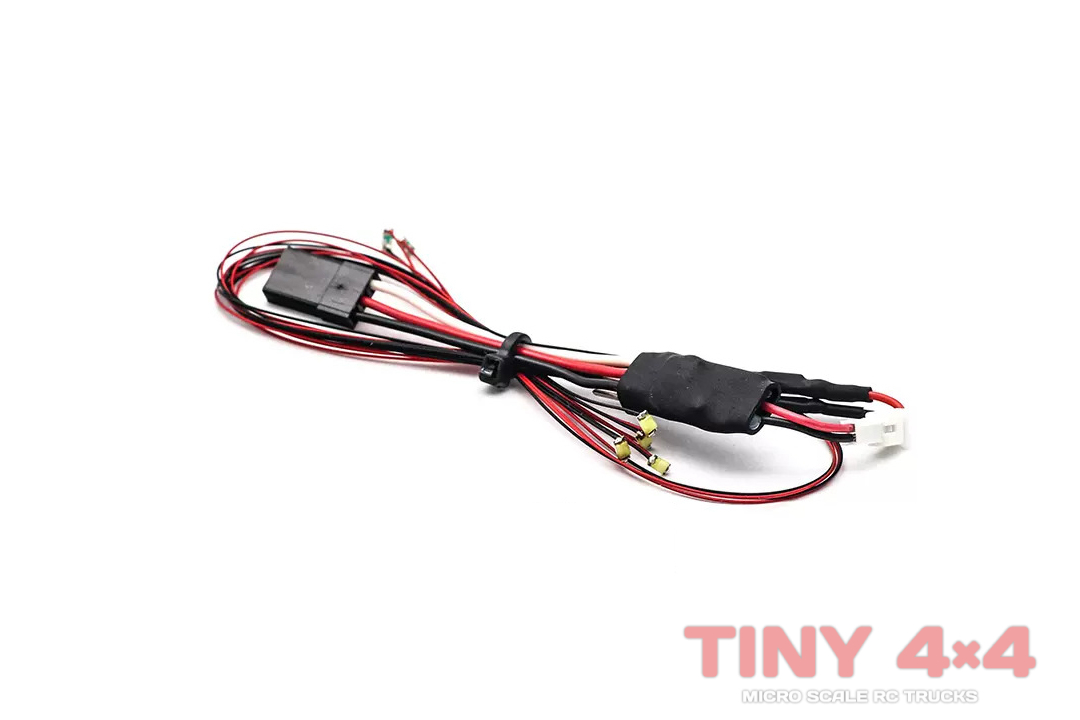

Each LED PCB Assembly includes a standard servo plug and a compact LED controller. When connected to an AUX channel on your receiver you can cycle through different lighting modes: off, constant on, flashing, and pulsing/breathing. The controller unit even features an extension jack, allowing you to daisy-chain additional units if you need even more LEDs

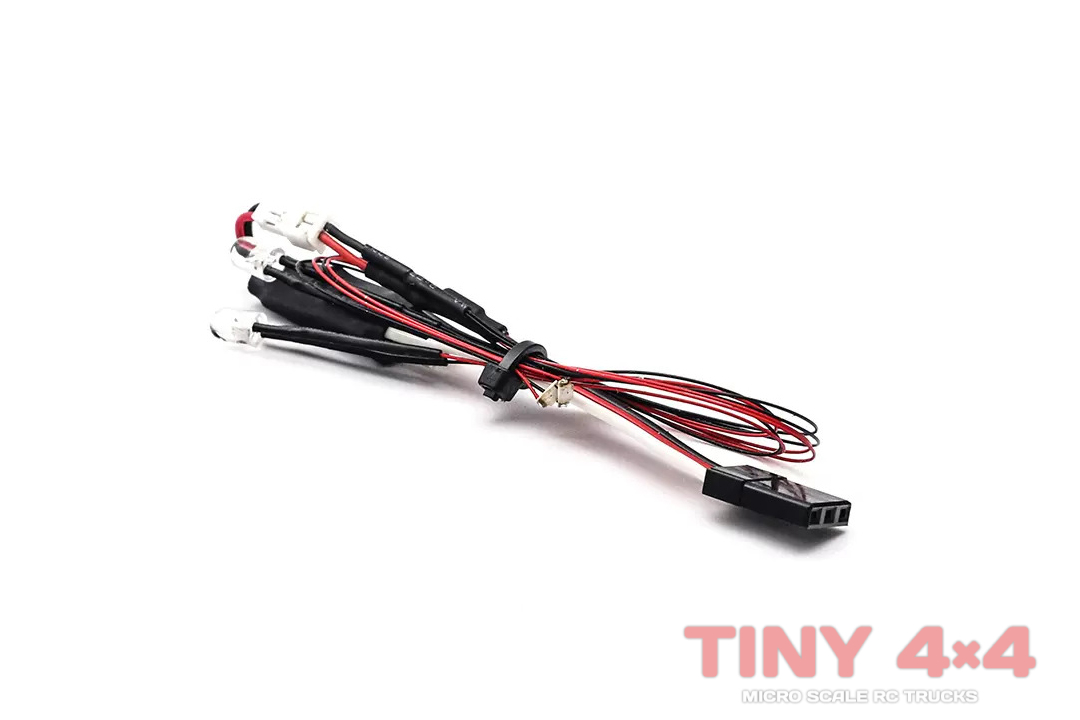

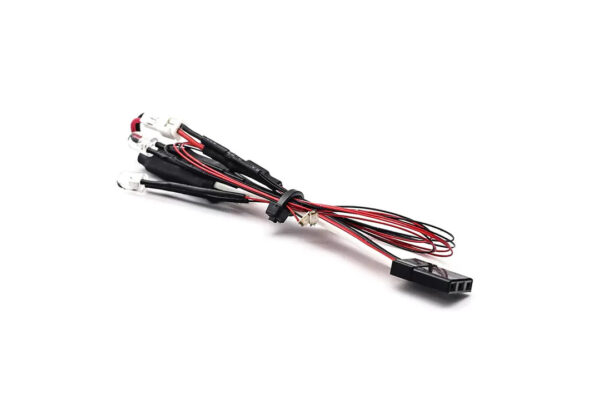

The LEDs come on a detachable pre-wired 26AWG harness, complete with drop-down resistor to ensure they receive the correct voltage. A compact JST-GH connector allows you to easily disconnect the LED harness from the controller, for example when removing the body from the chassis. The harness options offer varying wire lengths and numbers of LEDs to suit different Orlandoo models.
These LED PCB Assemblies are also be suitable for other micros and custom builds. Get your ruler out, measure up, and select the set that works for your use case.
Specifications: LED PCB Assemblies for Orlandoo Hunter
- LED Controller
- Size: L31mm x W9mm x H5.5mm
- Input voltage: 5v-8v
- Servo Lead Length: 55mm approx
- LED Output Lead Length: 20mm approx
- OH35P01/OH32P02:
- 2x 4mm white LEDs, 150mm wire
- 2x 1206 red SMDs, 185mm wire
- OH35A01/OH32A02/A03:
- 2x 4mm white LEDs, 160mm wire
- 2x 1206 red SMDs, 105mm wire
- OH32X01:
- 2x 4mm white LEDs, 110mm wire
- 3x 1206 red SMDs, 75mm wire
- OH32M01/M02:
- 4x 1206 white SMDs, 185mm wire
- 2x 1206 red SMDs, 420mm wire
