Description

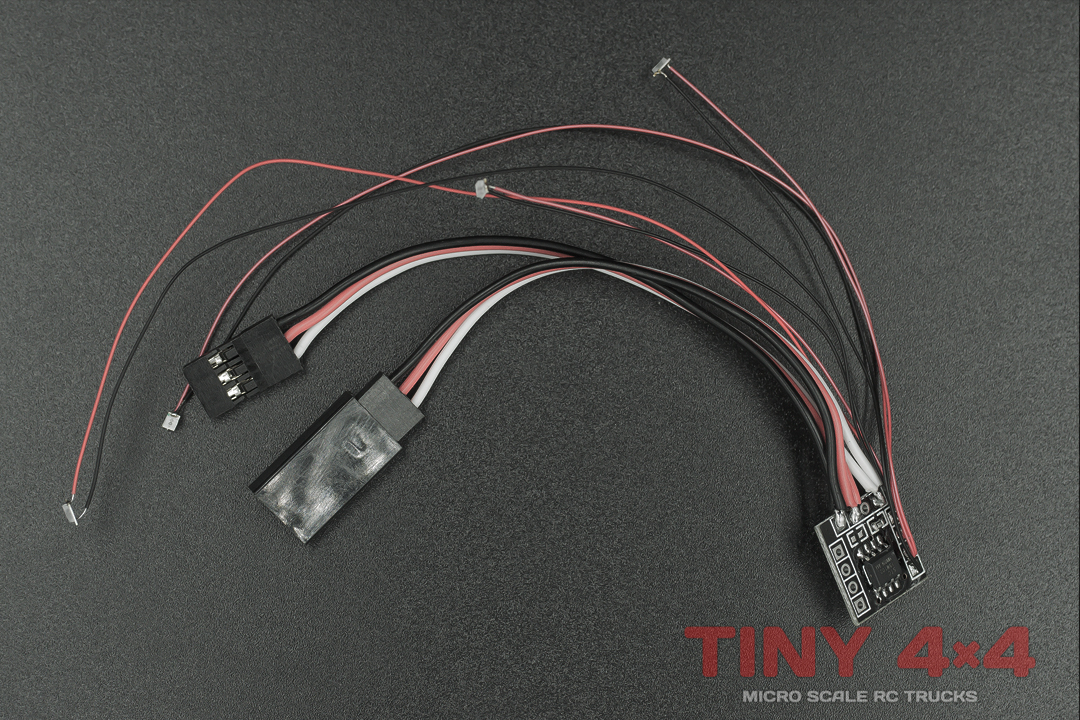

Blinker Circuit with 4x or 6x orange SMD LEDs. So you want working indicators for your rig? This unit is intended for the Orlandoo Hunter models. However, there is plenty of scope to fit a range of 1/24 – 1/35 scale RCs. Once installed, your turn signals / indicators / blinkers will automatically flash as you turn your vehicle left or right. Sit stationary for a short time and your hazard warning lights will come on!
For vehicles with standard size servo plugs, installation couldn’t be simpler. For steering-activated turn signals, the unit works as a pass-thru on your servo channel. Just plug this unit into your receiver’s servo socket, and plug your servo into this unit. If you’d prefer to operate the turn signals using a 3-pos switch on your TX, just plug the unit into the next spare channel on your receiver instead and assign the channel to your switch. You should have plenty of scope to squeeze the tiny 13.5mm x 13.5mm unit in just about anywhere. You will also find that the four or six orange SMD LED’s are prewired in varying lengths for your convenience. Just pick the version that suits your model best – see below for compatibility with Orlandoo models:
Specifications: Blinker Circuit with 4x Orange SMD LEDs (Short)
- Size: 13.5mm x 13.5mm
- LED Wire Length: 2x 70mm; 2x 150mm
- Connections: Standard servo, male socket & female (70mm lead)
- Functions: left turn, right turn, hazard (4 LEDs flash simultaneously)
- For Models: OH32A01, OH32A02, OH32P01, OH32P02
Specifications: Blinker Circuit with 6x Orange SMD LEDs (Short)
- Size: 13.5mm x 13.5mm
- LED Wire Length: 2x 70mm; 4x 150mm
- Connections: Standard servo, male socket & female (70mm lead)
- Functions: left turn, right turn, hazard (4 LEDs flash simultaneously)
- For Models: OH32A03
Specifications: Blinker Circuit with 6x Orange SMD LEDs (Long)
- Size: 13.5mm x 13.5mm
- LED Wire Length: 4x 120mm; 2x 240mm
- Connections: Standard servo, male socket & female (70mm lead)
- Functions: left turn, right turn, hazard (4 LEDs flash simultaneously)
- For Models: OH32M01, OH32M02, OH32T01
