MA2-600 Upgrade Metal Axles for Orlandoo Hunter

Description

MA2-600 Upgrade Metal Axles for Orlandoo Hunter. The ultimate Orlandoo upgrade, these axles are quite simply stunning. Machined from billet alloy, they share ring/pinion gears and CVDs with the A01 jeep. Now available in three different widths MA2-500(50mm), MA2-550(55mm) and these MA2-600(60mm). Whichever width you need, they are also now available in stunning anodized red and black as well as original silver finish.These ‘600’ versions are 5mm wider than the standard P01 F150 axles and a full 10mm wider than standard ‘A’ axles so are ideally suited for custom builds utilizing 1/24 scale kit bodies.

Not only do they come fully ballraced, you also get all the necessary fitting hardware. Included are steering linkage, fixing hardware, ball head screws, M2 threadloc wheel nuts and adjustable alloy servo mount. All wrapped up in a presentation tin for maximum unboxing experience!

Download the Installation Manual here.

Specifications: MA2-600 Upgrade Metal Axles for Orlandoo Hunter

• Construction: Alloy
• Input Shaft Diameter: 2mm
• Output Shafts: 2mm Dia Double-Flat, Threaded Ends
• Width (face to face): 60mm
• Width (shaft ends): 70mm

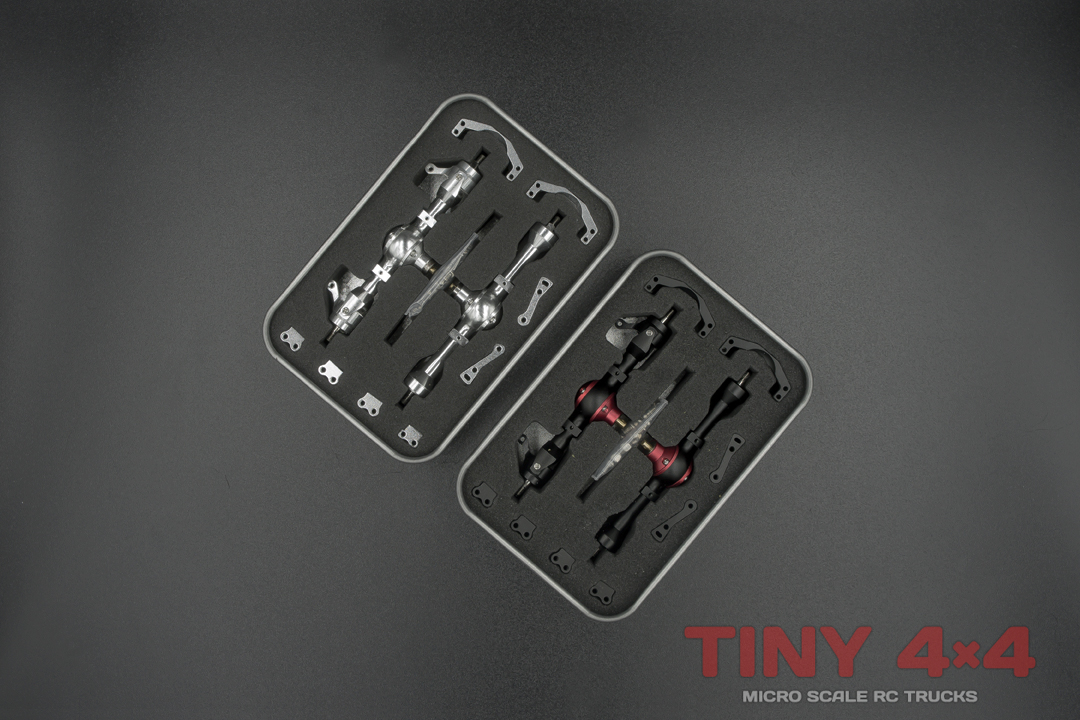

Included

• Ma2-600 Alloy Front Axle
• MA2-600 Alloy Rear Axle
• 2x Alloy Axle Truss
• Alloy Servo Mount
• Fixing Hardware
• Steering Arm and Drag Link, with Rod Ends
• 14x Ball Head Screws
