Description
MA2-550 Upgrade Metal Axles for Orlandoo Hunter. The ultimate Orlandoo upgrade, these axles are quite simply stunning. Machined from billet alloy, they share ring/pinion gears and CVDs with the A01 jeep. Now available in three different widths – MA2-500(50mm), MA2-550(55mm) and MA2-600(60mm). Whichever width you need, they are also now available in stunning anodized red and black as well as original silver finish. These 550 versions are the same width as the P01 F150 and X01 Rock Bouncer axles, or will provide a 5mm wider stance than stock for the A01 Jeep / A02 Pajero and A03 Defender.

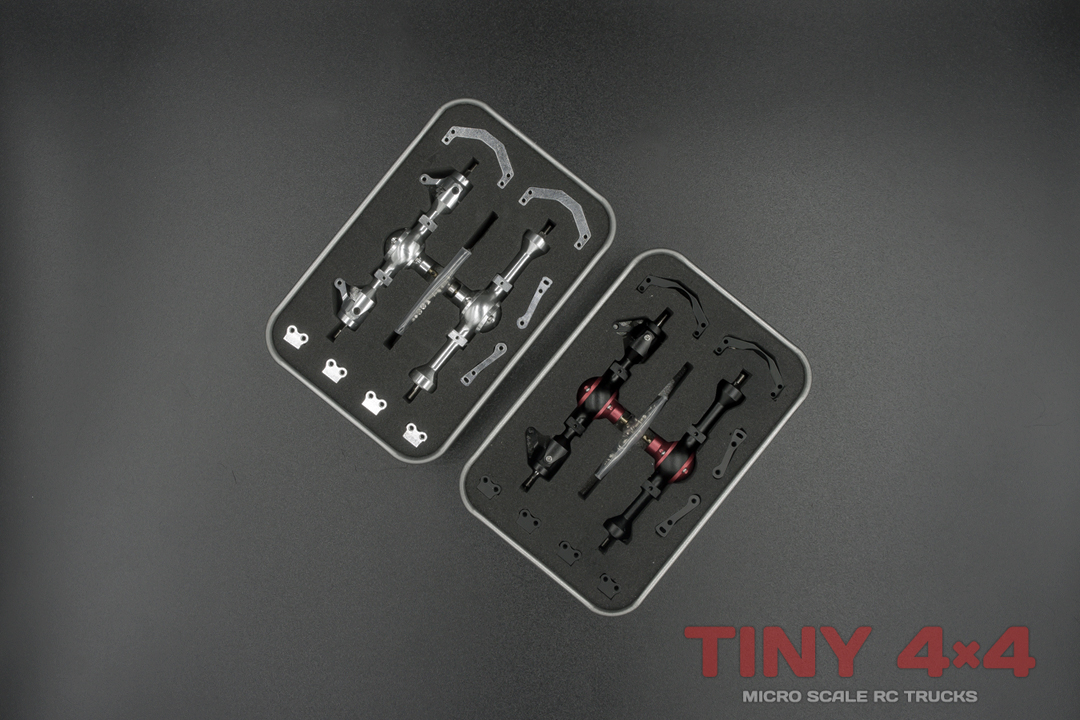

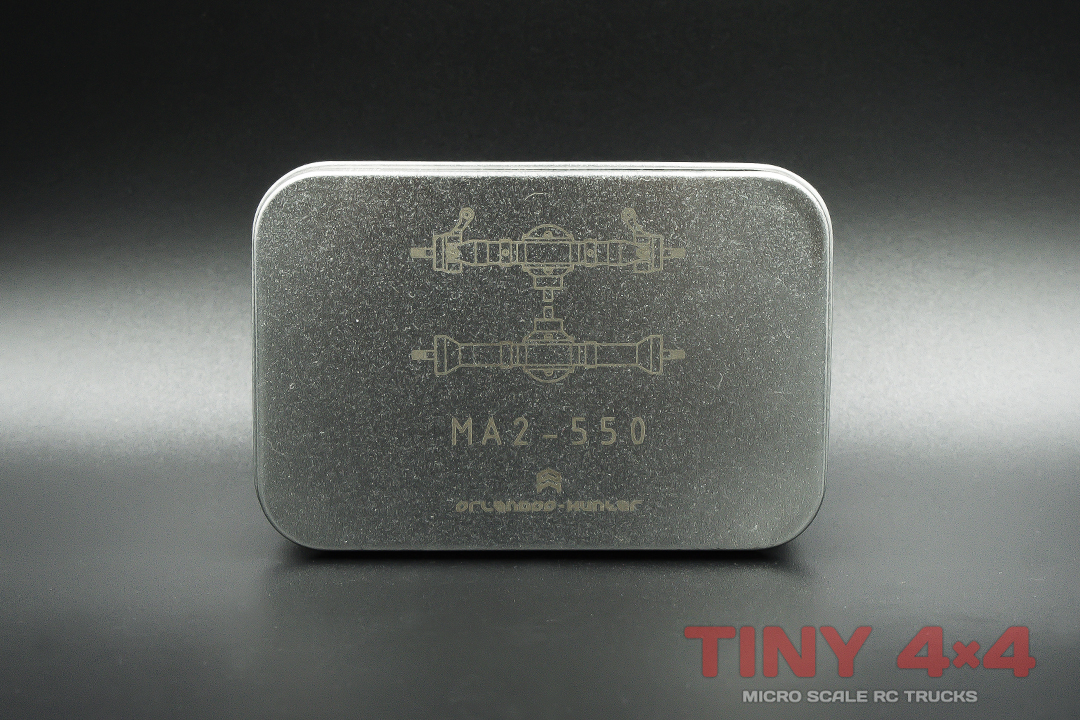

Not only do they come fully ballraced, you also get all the necessary fitting hardware. Included are steering linkage, fixing hardware, ball head screws, M2 threadloc wheel nuts and adjustable alloy servo mount. All wrapped up in a presentation tin for maximum unboxing experience!
Download the Installation Manual here.
Specifications: MA2-550 Upgrade Metal Axles for Orlandoo Hunter
- Construction: Alloy
- Input Shaft Diameter: 2mm
- Output Shafts: 2mm Dia Double-Flat, Threaded Ends
- Width (face to face): 56mm
- Width (shaft ends): 66mm
Included
- Ma2-550 Alloy Front Axle
- MA2-550 Alloy Rear Axle
- 2x Alloy Axle Truss
- Alloy Servo Mount
- Fixing Hardware
- Steering Arm and Drag Link, with Rod Ends
- 14x Ball Head Screws
marini-loris-89 (verified owner) –
Absolutely impressive quality and strenght, require threadlocker for screws.
Can fit pass-trought axle spare for custom 6×6-8×8 builds!
chrismltaylor1980 (verified owner) –
These are so nice! Stop reading reviews and click buy already, your doo deserves them?
Build tip:- check the drive direction for each axle before final assembly they can be fitted either way up. I learned the hard way lol. Happy crawling!
