MA2-500 Upgrade Metal Axles for Orlandoo Hunter

Description

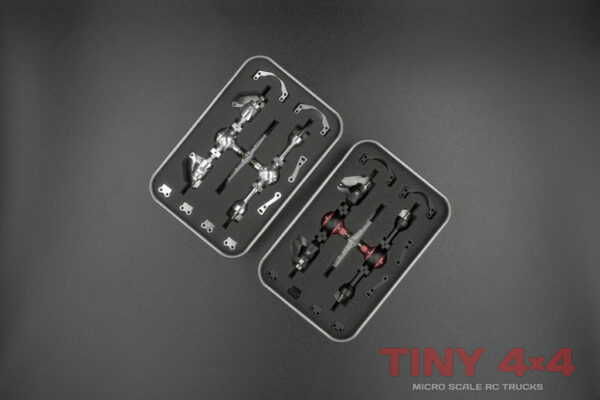

MA2-500 Upgrade Metal Axles for Orlandoo Hunter. The ultimate Orlandoo upgrade, these axles are quite simply stunning. Machined from billet alloy, they share ring/pinion gears and CVDs with the A01 jeep. Now available in three different widths – MA2-500(50mm), MA2-550(55mm) and MA2-600(60mm). Whichever width you need, they are also now available in stunning anodized red and black as well as original silver finish. These ‘500’ versions are almost identical in width to the standard ‘A’axles, so will not affect the stance for the A01 Jeep / A02 Pajero / A03 Defender.

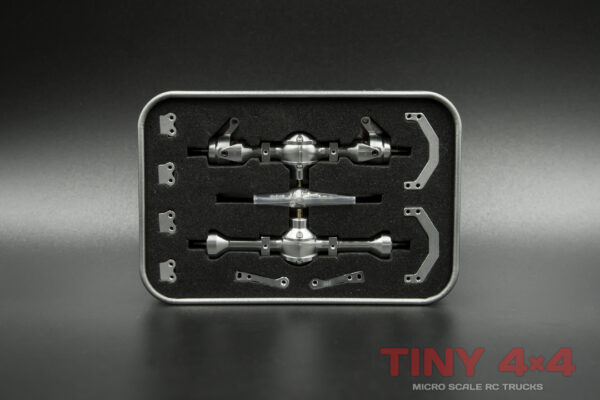

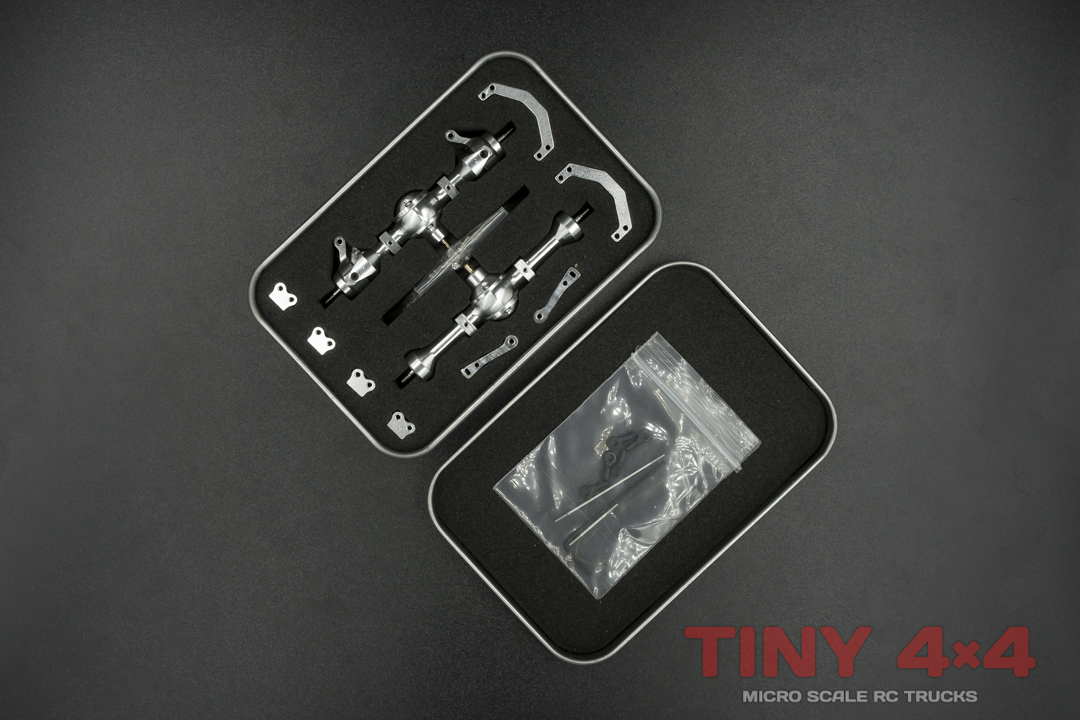

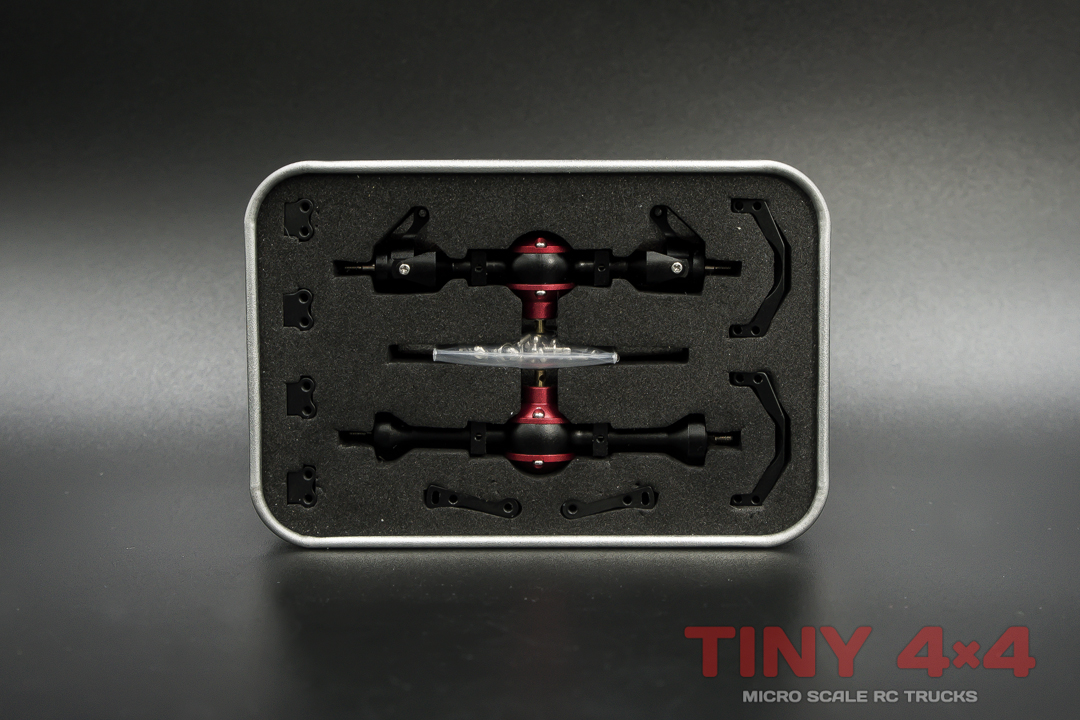

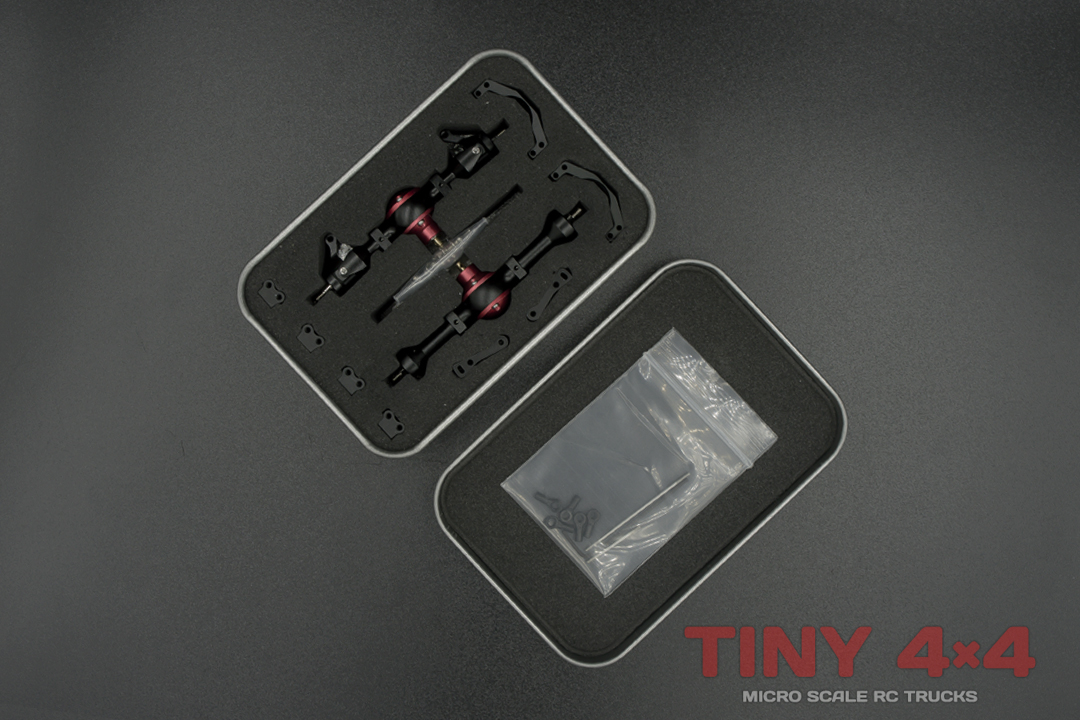

Not only do they come fully ballraced, you also get all the necessary fitting hardware. Included are steering linkage, fixing hardware, ball head screws, M2 threadlock wheel nuts and adjustable alloy servo mount. All wrapped up in a presentation tin for maximum unboxing experience!

Download the Installation Manual here.

Specifications: MA2-500 Upgrade Metal Axles for Orlandoo Hunter

• Construction: Alloy
• Input Shaft Diameter: 2mm
• Output Shafts: 2mm Dia Double-Flat, Threaded Ends
• Width (face to face): 50mm
• Width (shaft ends): 60mm

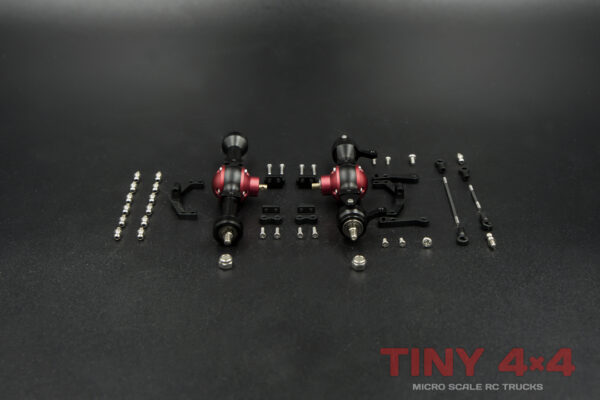

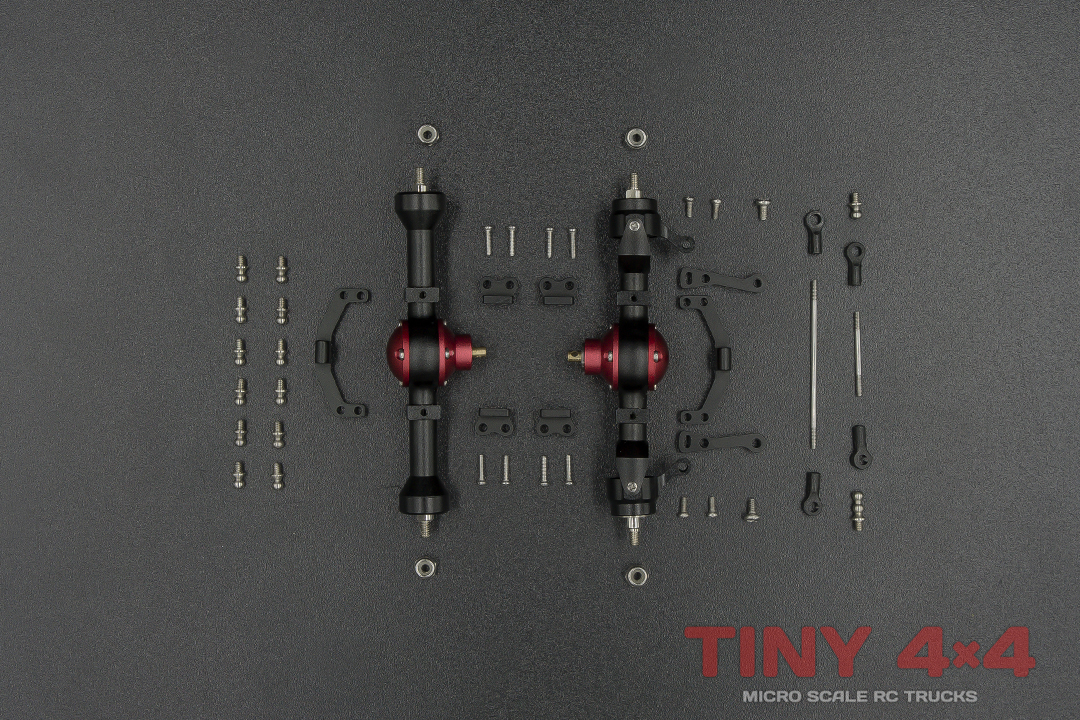

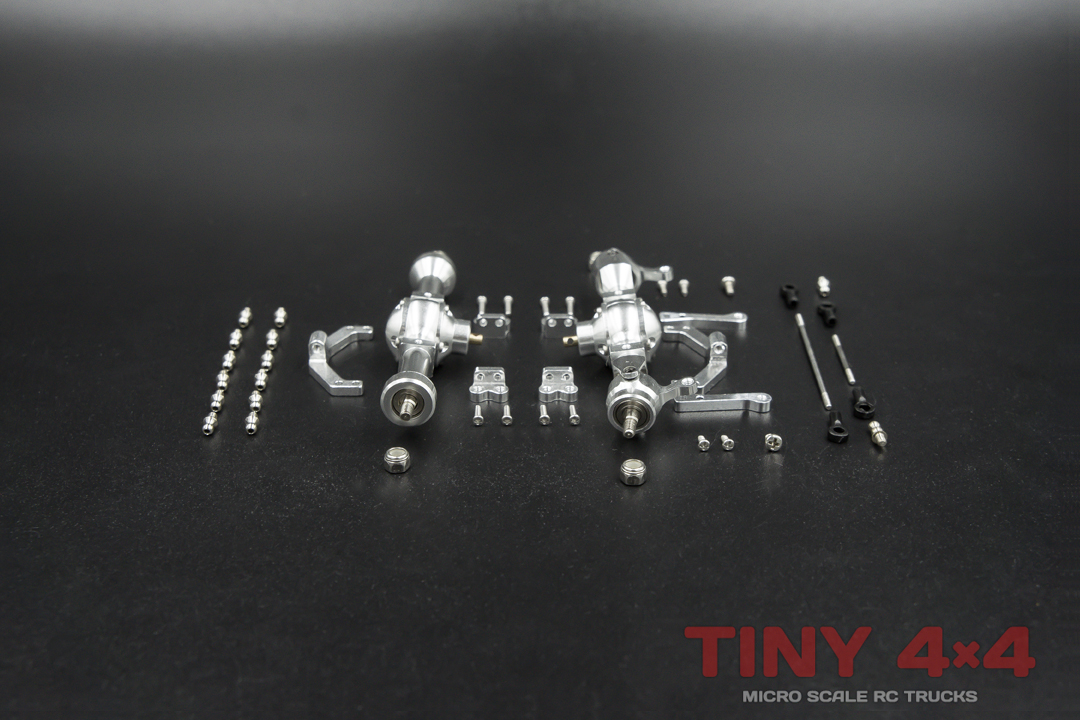

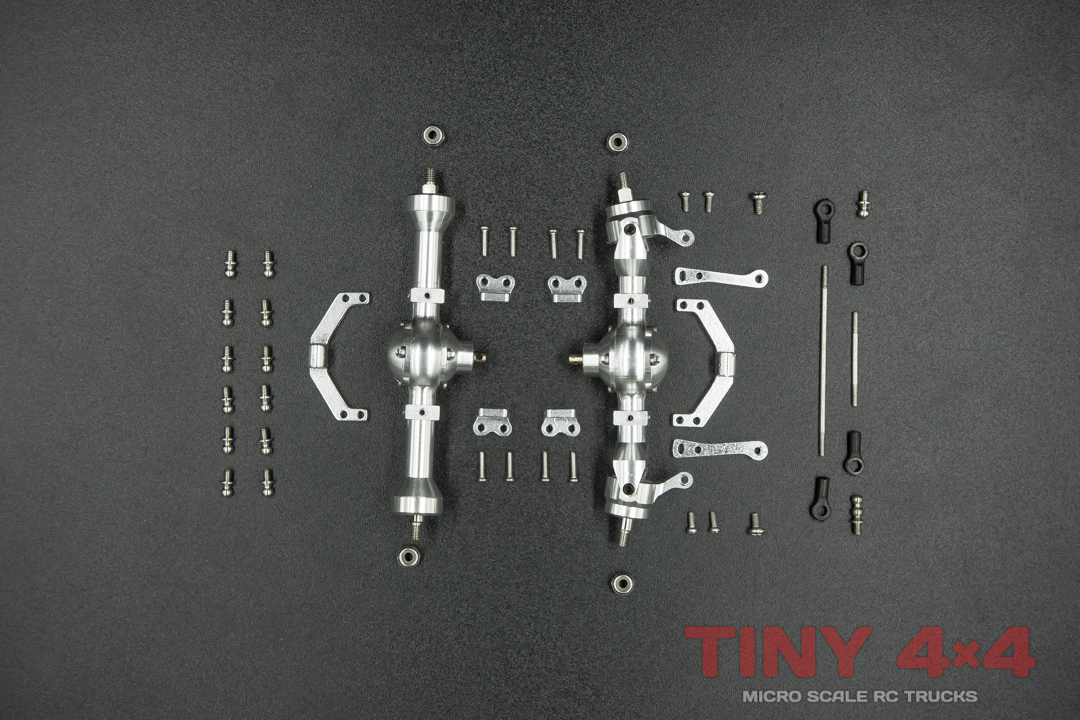

Included

• Ma2-500 Alloy Front Axle
• MA2-500 Alloy Rear Axle
• 2x Alloy Axle Truss
• Alloy Servo Mount
• Fixing Hardware
• Steering Arm and Drag Link, with Rod Ends
• 14x Ball Head Screws
