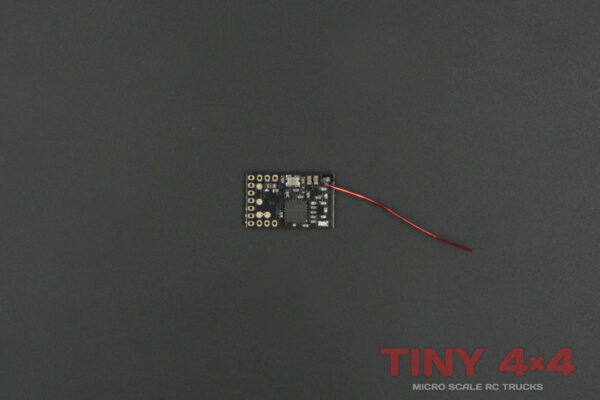

DasMikro 7ch Flysky AFHDS AiO Nano RX/ESC Combo

Description

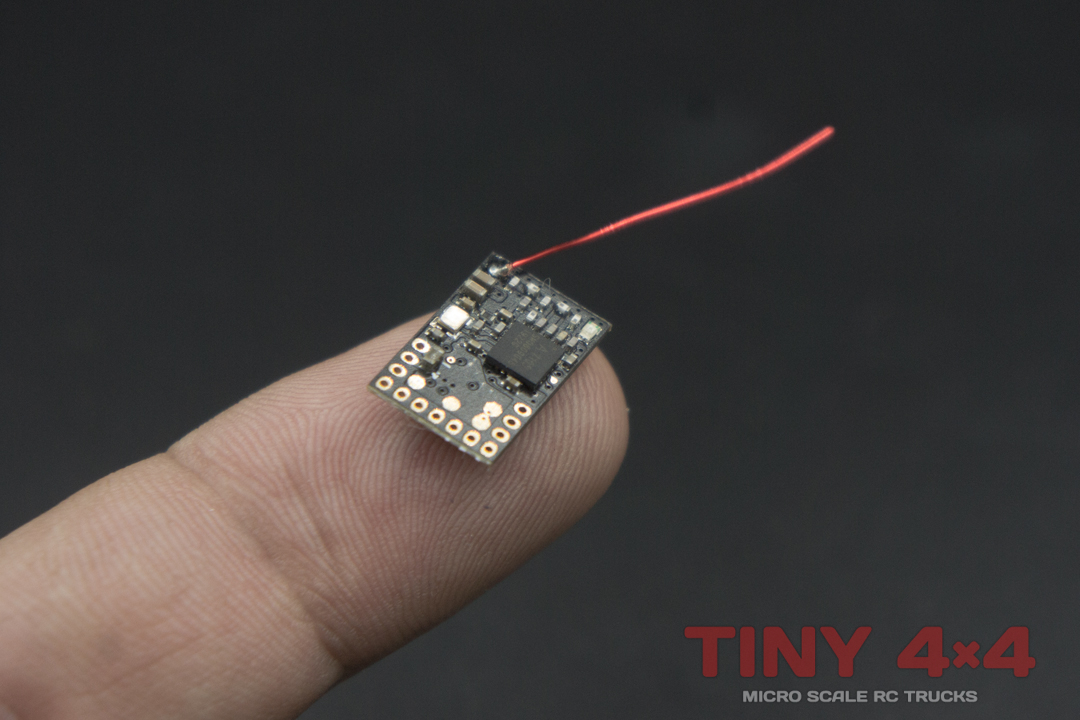

DasMikro 7ch Flysky AFHDS AiO Nano RX/ESC Combo. We are super happy to be able to bring you this compact, highly flexible little all-in-one unit. Weighing in at just half a gram, this tiny little board combines a 7ch receiver with dual integrated ESCs. Perfect for 1\87 RC builds where your internal space is at an absolute premium, you can use this board for wheeled or tracked vehicles. As if that wasn’t enough, it also packs a third mono-directional ESC with a higher power output for micro planes or helis!

We haven’t tried it, but we believe this board could also be used for larger models, combined with a traditional separate ESC. Onboard micro winch controller anyone? Just be aware this board is designed to be powered by a 1S LiPo. You will need a voltage-drop buck if you intend to use a 2S battery.

The receiver is compatible with older Flysky radios that use the tried and true AFHDS protocol – a full list of known compatible transmitters is below. Where it gets really clever is with the multiple motor outputs of the integrated ESC circuit. Connect your motor to OUT5 for a mono-directional 3A ESC, perfect for indoor fliers or hardcore micro racers. This output can also be used as an on/off switch to power LEDs. Connect to OUT1/2 or OUT3/4 for the two bi-directional 1A ESC circuits. Simples!

Specifications: DasMikro 7ch Flysky AFHDS AiO Nano RX/ESC Combo

• Dimensions: 16mm x 10mm x 2.5mm
• Weight: 0.5g
• Operating Voltage: 3.0V – 4.2V
• Channels: 7ch
• Protocol: AFHDS 2.4GHz

Functionality: DasMikro 7ch Flysky AFHDS AiO Nano RX/ESC Combo

• Receiver: 7 channel Flysky AFHDS 2.4GHz compatible
• 2x Integrated Bi-directional 1A ESCs
• 1x Integrated Mono-directional 3A ESC

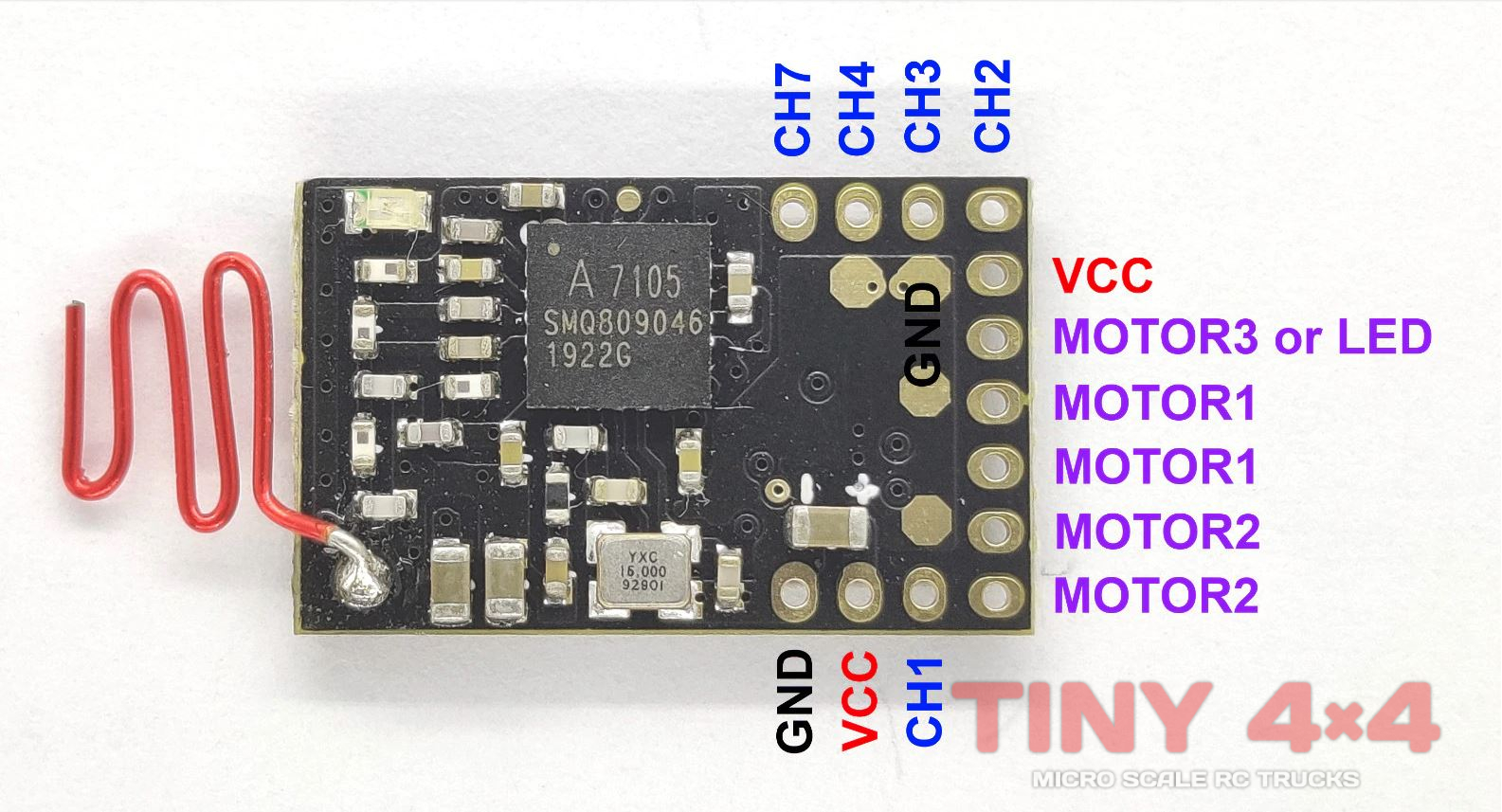

Servo signal outputs

• CH1: Steering
• CH2: Throttle (Bi-directional ESC #1)
• CH3: Spare
• CH4: Spare
• CH5: Throttle (mono-directional ESC) or On/Off (LED Output)
• CH6: Throttle (Bi-directional ESC #2)
• CH7: Spare

Bi-directional ESC outputs

• OUT1/OUT2: connect a brushed motor, controlled by CH2 signal from transmitter
• OUT3/OUT4: connect a brushed motor, controlled by CH6 signal from transmitter

Single-directional ESC or LED output

• OUT5: connect a brushed motor or LEDs, controlled by CH5 signal from transmitter

Binding Procedure:

1. Power on the receiver. The LED will flash slowly.
2. Wait 15 seconds and the LED will flash quickly, indicating the receiver is in pairing mode.
3. Now you can switch on your transmitter to start the auto-bind sequence.
4. Once the bind is successful, the receiver LED will be on.
5. Power off both your transmitter and receiver then power them on again, now the receiver should be controlled by your transmitter.

Compatible Transmitters

• FLYSKY Gun-type transmitter like GT2/GT2B/GT3/GT3B/GT3C/GT3C (with PSX.0.6.1 8CH Firmware update)
• FLYSKY Stick-type transmitter like CT6A/CT6B/T6/TH9X/I4/I4X/I6/I6X/I10
• Jumper Stick-type transmitter like T8SG/T12/T12PRO/T16/T16PRO
• Any OPENTX and Deviation Stick-type transmitter installed with A7015 RF module
