DasMikro 4ch Nano RX Flysky Noble NB4

Description

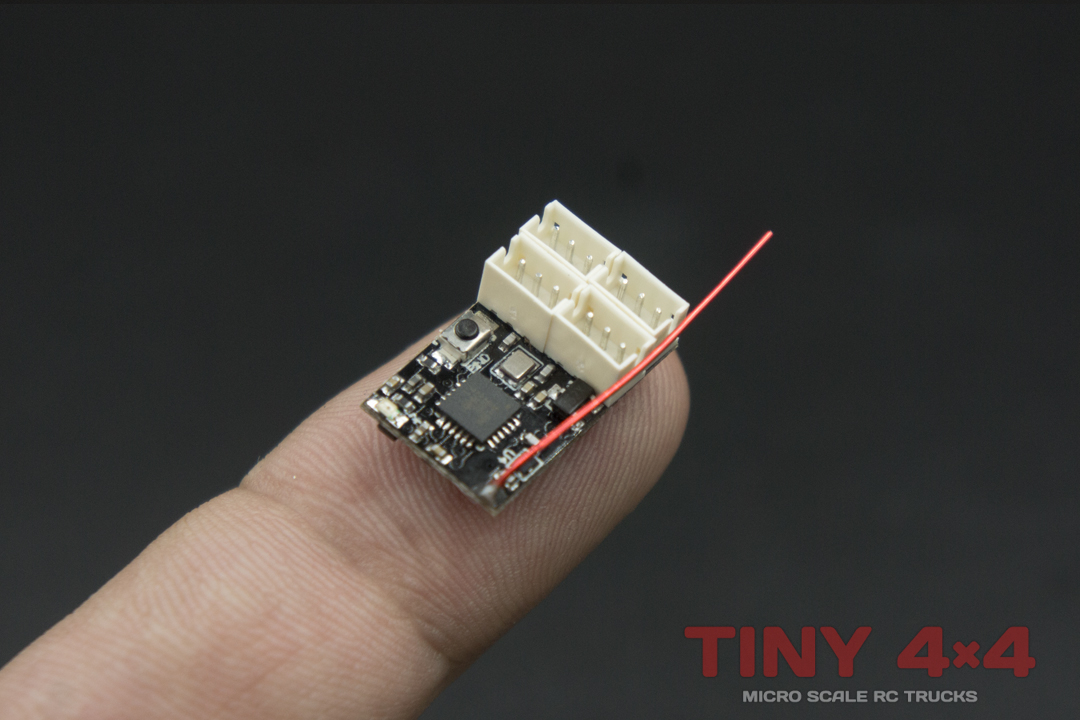

DasMikro 4ch Nano RX Flysky Noble NB4. This tiny 2.4Ghz RC receiver from DasMikro uses the latest Flysky AFHDS3 protocol. It is currently only compatible with the Flysky Noble NB4 transmitter, but no doubt Flysky will be expanding their AFHDS3 range. It has a single short wire antenna, uses two-way transmission and features a unique compact design. A high performance CPU provides precision control of each channel, befitting the quality exuded by the Noble transmitter.

This receiver utilizes 1.5mm JST-ZH 3-pin connectors to save space and unnecessary weight. The package also includes four male connectors on 75mm high quality silicon leads. So with some soldering skill you can convert any existing components such as ESC or Servo to be compatible.

Specifications: DasMikro 4ch Nano RX Flysky Noble NB4

• Dimensions: 19mm x 12mm
• Weight: 3g
• Protocol: FLYSKY AFHDS3
• Channels: 4ch
• Failsafe: Yes
• Connector sockets: 3-pin 1.5mm JST-ZH
• Operating Voltage 3.5V – 12V

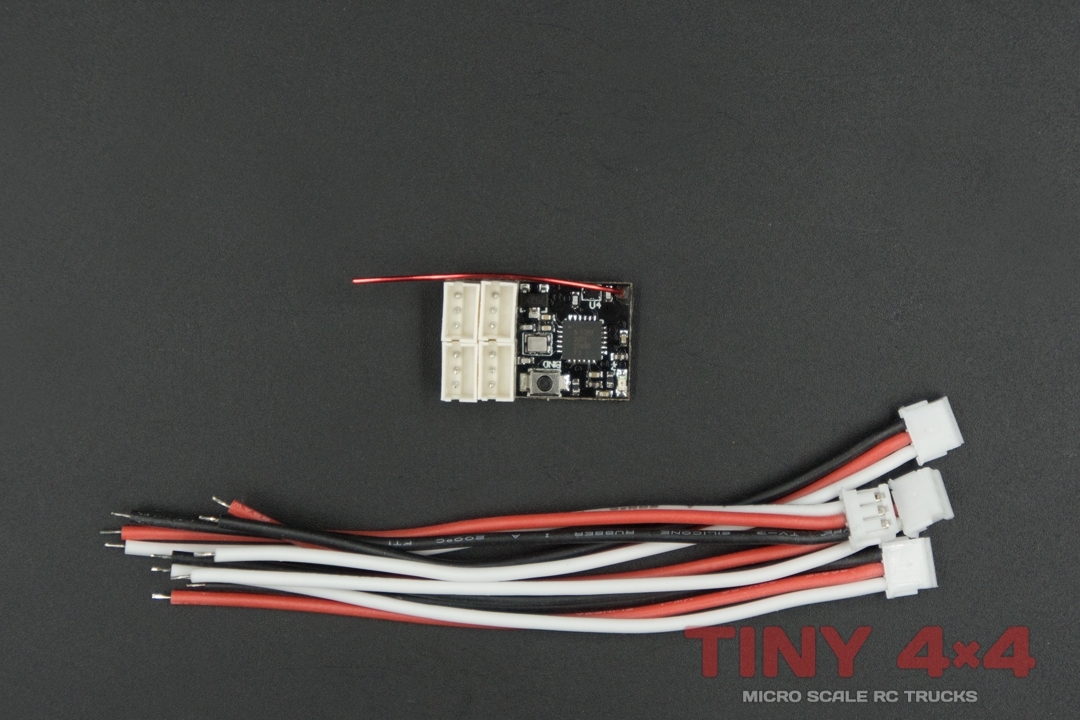

Included:

• 1 x Receiver
• 4 x 1.5mm 3P JST-ZH plug with high quality silicon cable

Compatible Transmitters

• Flysky Noble NB4
• Flysky Noble NB4 Pro

Binding Procedure

1. Press and hold the BIND button and power on the receiver; the receiver’s led will flash quickly.
2. Put the transmitter into bind mode. The receiver’s led will flash slowly when the binding is successful.
3. Power off the receiver and then power on again. The receiver should now be working normally (steady LED).

Receiver Forced Update Mode

If you update the firmware on your NB4 Noble transmitter it is likely you will then need to update and re-bind all your receivers. To update this nano RX you need to:

1. Connect one side of the Bind button to the signal output on CH4 on your receiver, and then power it on. (This is best done with a small pair of metal tweezers between the button contact and servo output pin. Using a switched power source will also make the operation easier. If connecting one side of the Bind button doesn’t work, try connecting to the other side.)
2. The receiver LED will repeat a pattern of flashing rapidly 3 times followed by a longer pause to indicate it is in update mode.
3. You can then choose ‘RX SET/Update Receiver’ in you transmitter menu and select FGr4S/FGr4P receiver type.
4. Once the receiver updates successfully it will automatically move into bind mode (continuous rapid flash).
5. Put your transmitter into Bind mode. The receiver’s led will flash slowly when the binding is successful.
6. Power off the receiver and then power on again. The receiver should now be working normally (steady LED).
