7CH Nano RX Flysky AFHDS2A

Original price was: USD $19.90.Current price is: USD $18.90.

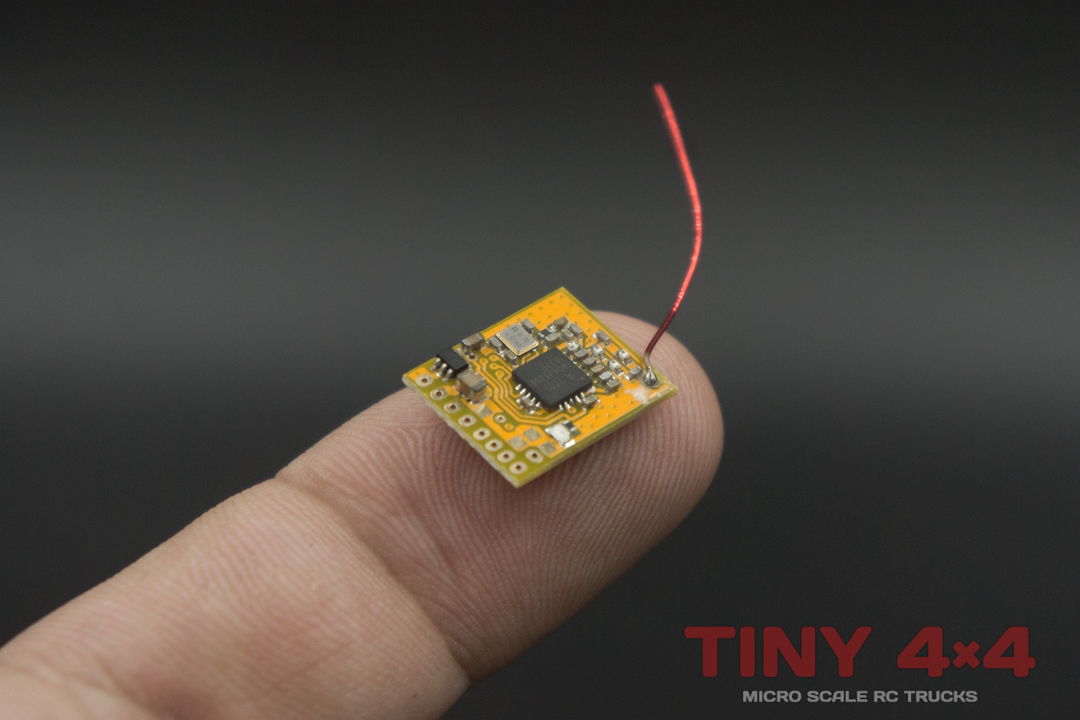

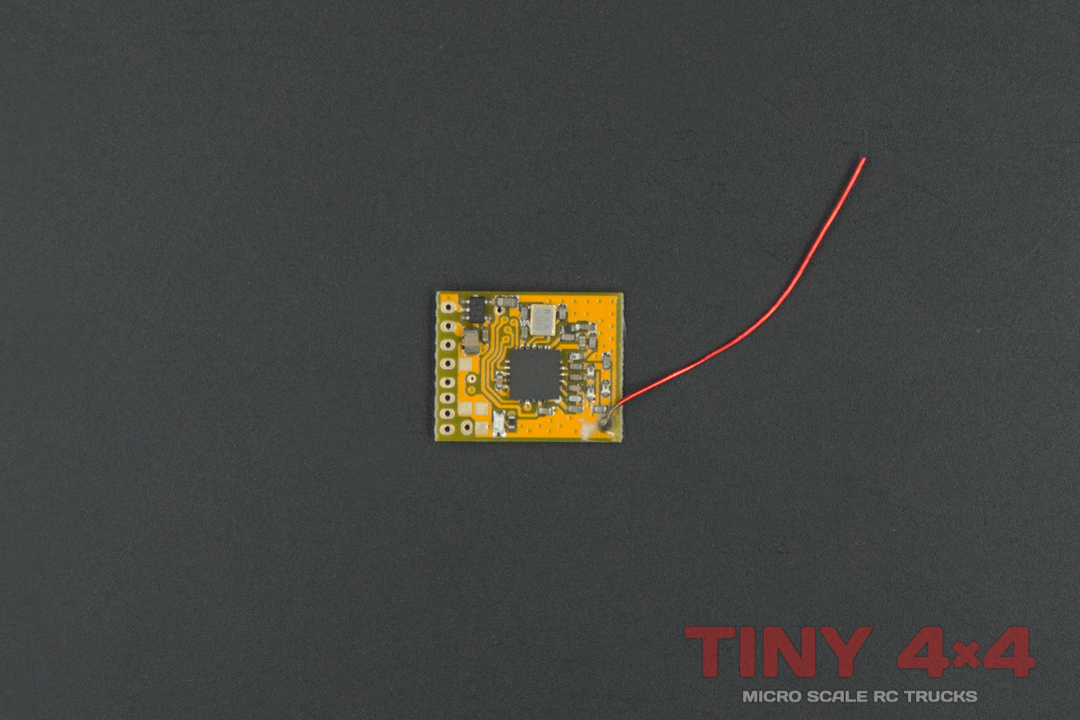

7CH Nano RX Flysky AFHDS2A. This tiny board supports the newer AFHDS-2A Flysky protocol, further extending the range of transmitters you can use for 1/87 RCs. These nano RXs are also great for larger scale trucks where space is tight.

Out of stock

SKU: DAS1025 Categories: , , ,
*Images for illustration only, please refer to the components list.

Description

7CH Nano RX Flysky AFHDS2A. We love Flysky – they are possibly the best value hobby-grade radios on the market. So we’re very happy to be able to bring you another FS-compatible nano receiver. This tiny board supports the newer AFHDS-2A protocol, further extending the range of transmitters you can use for 1/87 RCs. These nano RXs are also great for larger scale trucks where space is tight. Sometimes it is worth sacrificing the convenience of plugs and sockets in order to squeeze in that full interior!

Your servo, ESC and other ancillaries will need to be soldered direct to the output pads on the board.

Specifications: 7CH Nano RX Flysky AFHDS2A
  • Channels: 7ch
  • Protocol: Flysky AFHDS2A
  • Output: PWM
  • Dimensions: 12mm x 12mm
  • Weight:0.5g
Binding Procedure:
  1. Power on the receiver. The LED will flash slowly.
  2. Wait 10 seconds and the LED will flash quickly, indicating the receiver is in pairing mode.
  3. Now you can switch on your transmitter to start the auto-bind sequence.
  4. Once the bind is successful, the receiver LED will be on.
  5. Power off both your transmitter and receiver then power them on again, now the receiver should be controlled by your transmitter.
Compatible Transmitters
  • All Flysky AFHDS2A transmitters: e.g. GT2E, GT5, I3, I4, I4X, I6, I6S, I6X
  • All OPENTX/Deviation transmitters with A7105 RF module

Additional information

Weight 14 g
Dimensions (Packaging Size) 99 × 99 × 9 mm
Category

Electronics

Manufacturer

Das87 / DasMikro

Model

DooRok, Geko24 V3, Geko24 V4, Geko24 V5, Kuro King XR01, OH32A02, OH32A03, OH32M01, OH32M02, OH32N01, OH32P02, OH32X01, OH35A01, OH35P01, ORCSA01

Color

Yellow

Scale

1/20 – 1/18, 1/25 – 1/24, 1/35 – 1/32
