DasMikro 8 Channel Micro Receiver For Flysky

Description

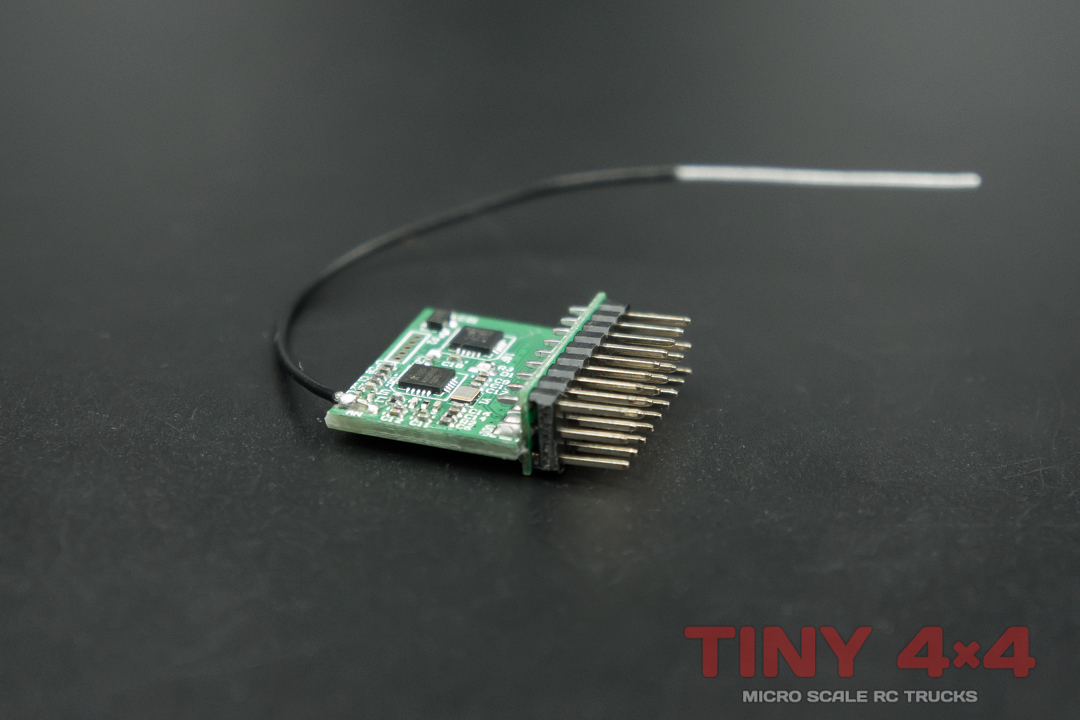

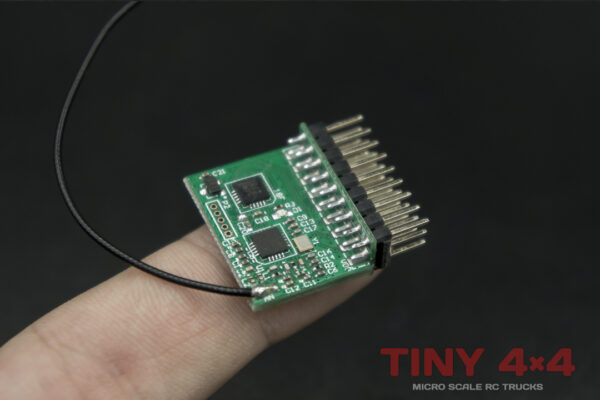

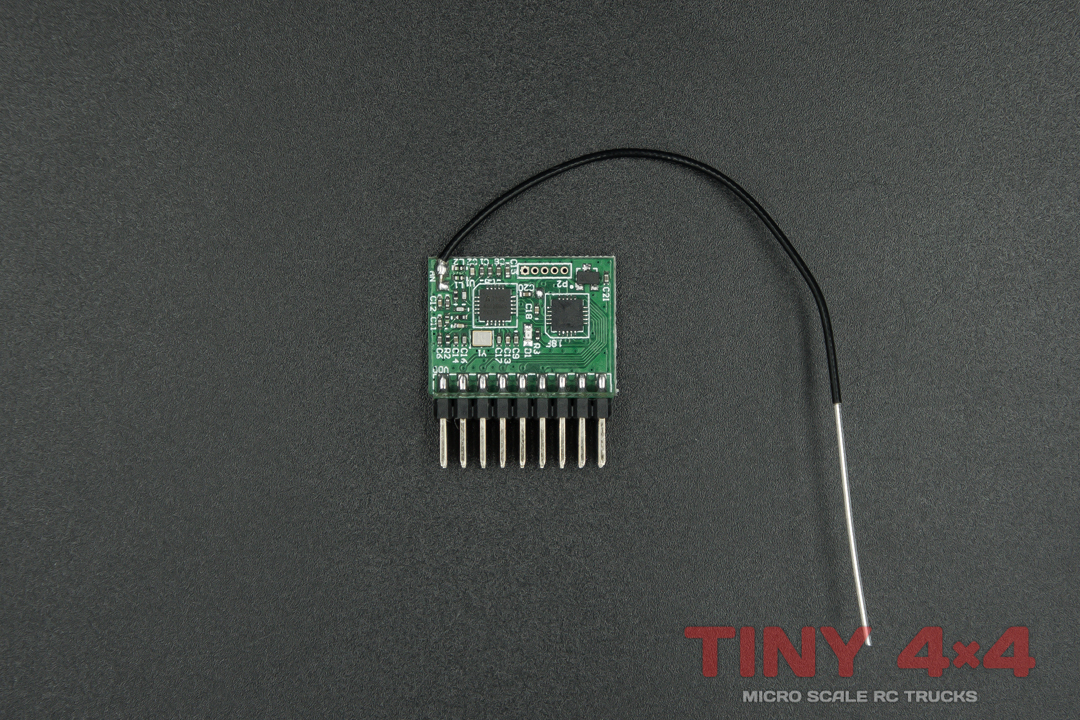

DasMikro 8 Channel Micro Receiver For Flysky. A compact eight channel receiver compatible with Flysky Transmitters (AFHDS Protocol). If you have modded your Flysky GT3B or GT3C Transmitter you’ll be looking to take advantage of all those extra unlocked channels. Look no further than this receiver board from DasMikro. It offers a compact footprint and the full eight header pins ready to accept standard servo plugs. Not only is it plug’n’play, with more channels than you can probably hope to use, it is also compatible with a wide range of Flysky’s affordable and well regarded transmitters.

In case you are unaware, The Flysky GT2B, GT3B and GT3C transmitters can be hacked with an open source firmware to unlock eight channels. Information on how to hack your transmitter can be found on YouTube.

Specifications: DasMikro 8 Channel Micro Receiver For Flysky

• Channels: 8ch
• Frequency Band: 2.4 GHz
• Protocol: AFHDS
• Modulation: PWM / GFSK
• Sensitivity: 1024
• RF. Receiver Sensitivity: -100dbm
• Input:3.7v – 9.6V DC
• Dimensions: L24mm x W28mm x H8mm
• Antenna Length: 110mm
• Weight: 4g
• Binding: Auto-Bind
• Failsafe: Programmable failsafe positions (see below)

Compatible with the following Flysky transmitters:

• GT2B
• GT3B
• GT3C
• i6
• i10
• T6
• CT6B
• TH9X

Bind Procedure:

There is no separate bind pin. The receiver has an “autobind” procedure just like with small quad-copters.

When switched on, the receiver tries to bind with transmitter for about three seconds (led is flashing). If the receiver finds a transmitter (must be also in bind mode) then it will recognize the transmitter and binds to it. If it can’t find any transmitter in bind mode nearby, it falls back to a previously bound transmitter identifier and binds to that. This way, you save an extra pin and only need to bind once.

After a successful bind procedure, the LED on the board shows as follows:

• Good Reception: LED Constant On
• No Reception: LED Off
• Poor/Intermittent Reception: LED Random Flashing

Failsafe:

Push the failsafe button the receiver will record 8 channels’ position as failsafe output.
